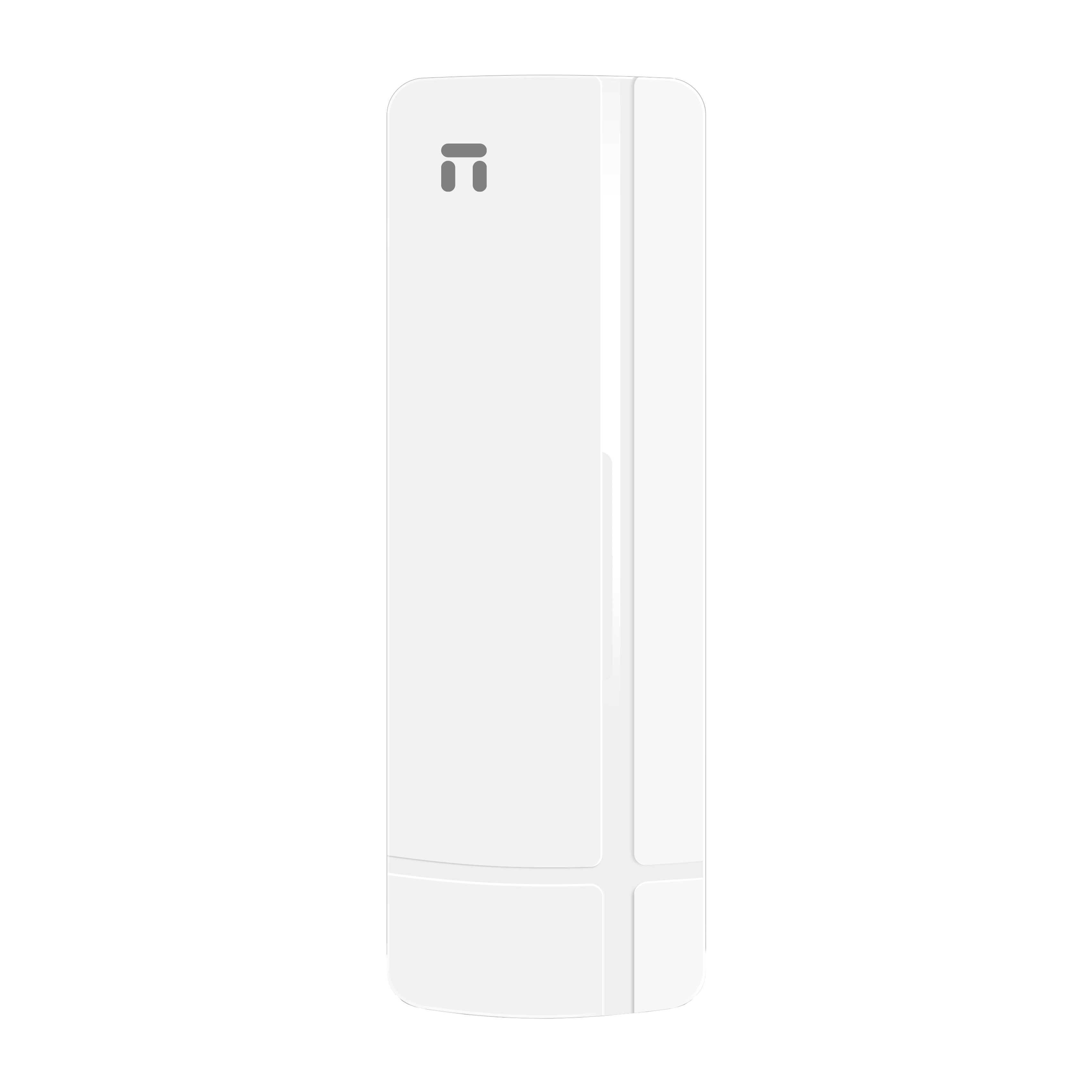

NB50

• Cost-effective hardware configuration

MediaTek's enterprise-class master chip, industrial-grade circuit design, support IEEE802.11AC protocol, can provide 450Mbps wireless access speed and 100Mbps Ethernet exchange processing speed. Excellent anti high and low temperature design, fully protect user network data in the extreme

environment, real-time, long-term, stable and efficient transmission, enhance user experience.

• Powerful wireless transmission capability

The circuit design with high power and high reception sensitivity greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.

• Pairing simple and efficient

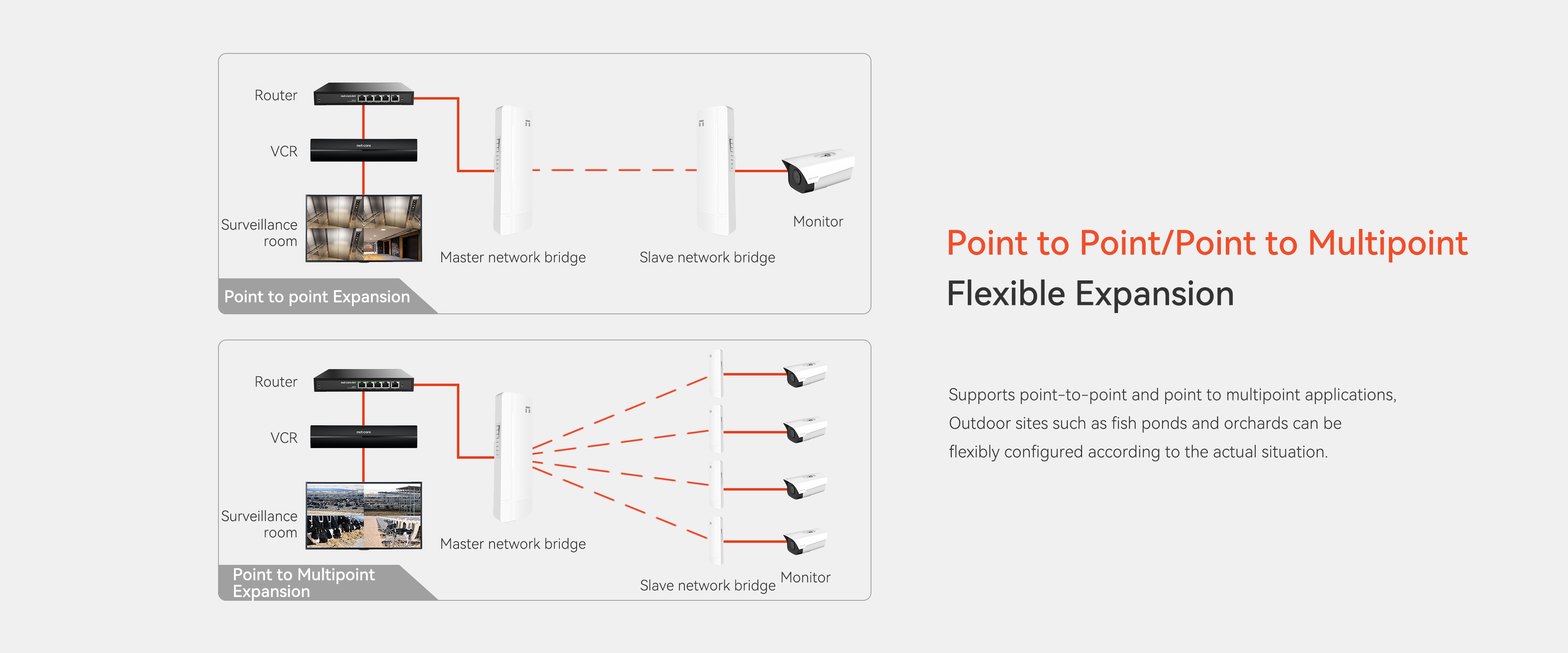

Without the need of network professional knowledge, without computer operation, easy to dial code and adjust the main and slave devices digital tube to the same value to complete point to point, point to multi point (within 8 points) matching work.

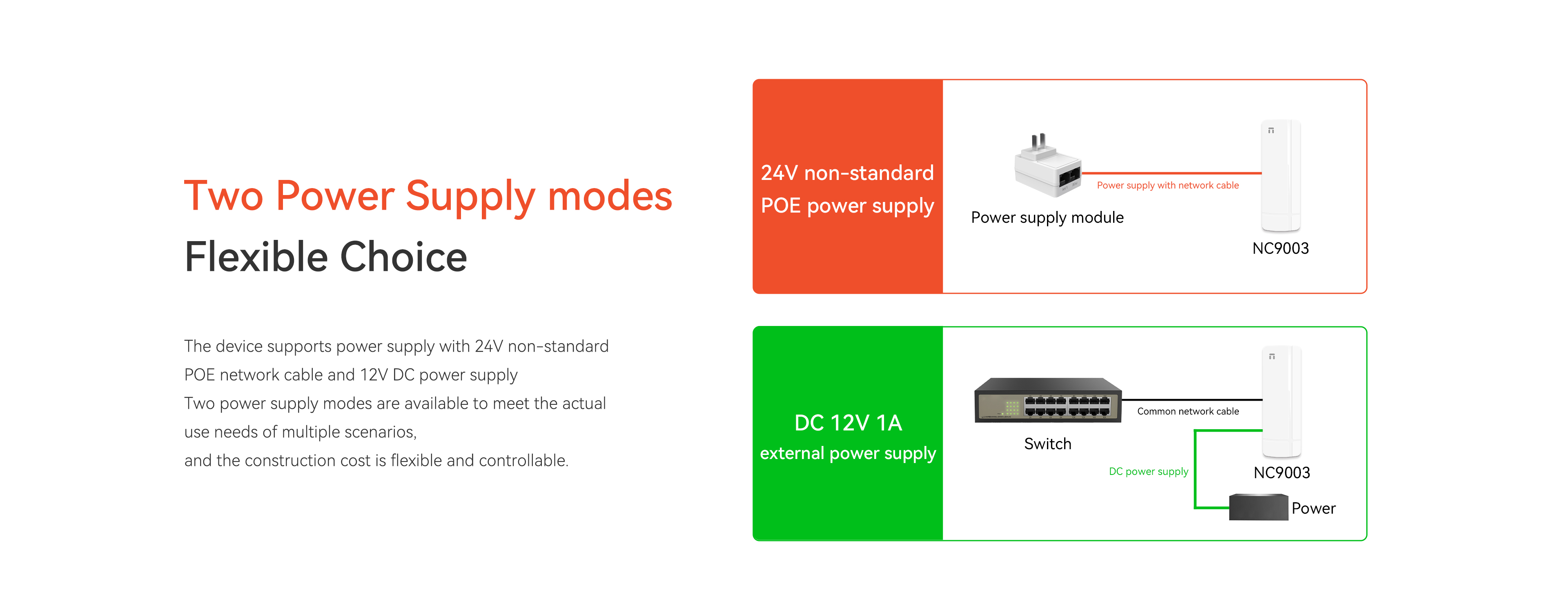

• Power supply version is optional

The A600 not only supports POE remote network cable power supply, but also supports 12V 1A DC local power connection to meet the needs of various scenarios, reduce construction costs, and flexibility select the power supply method.

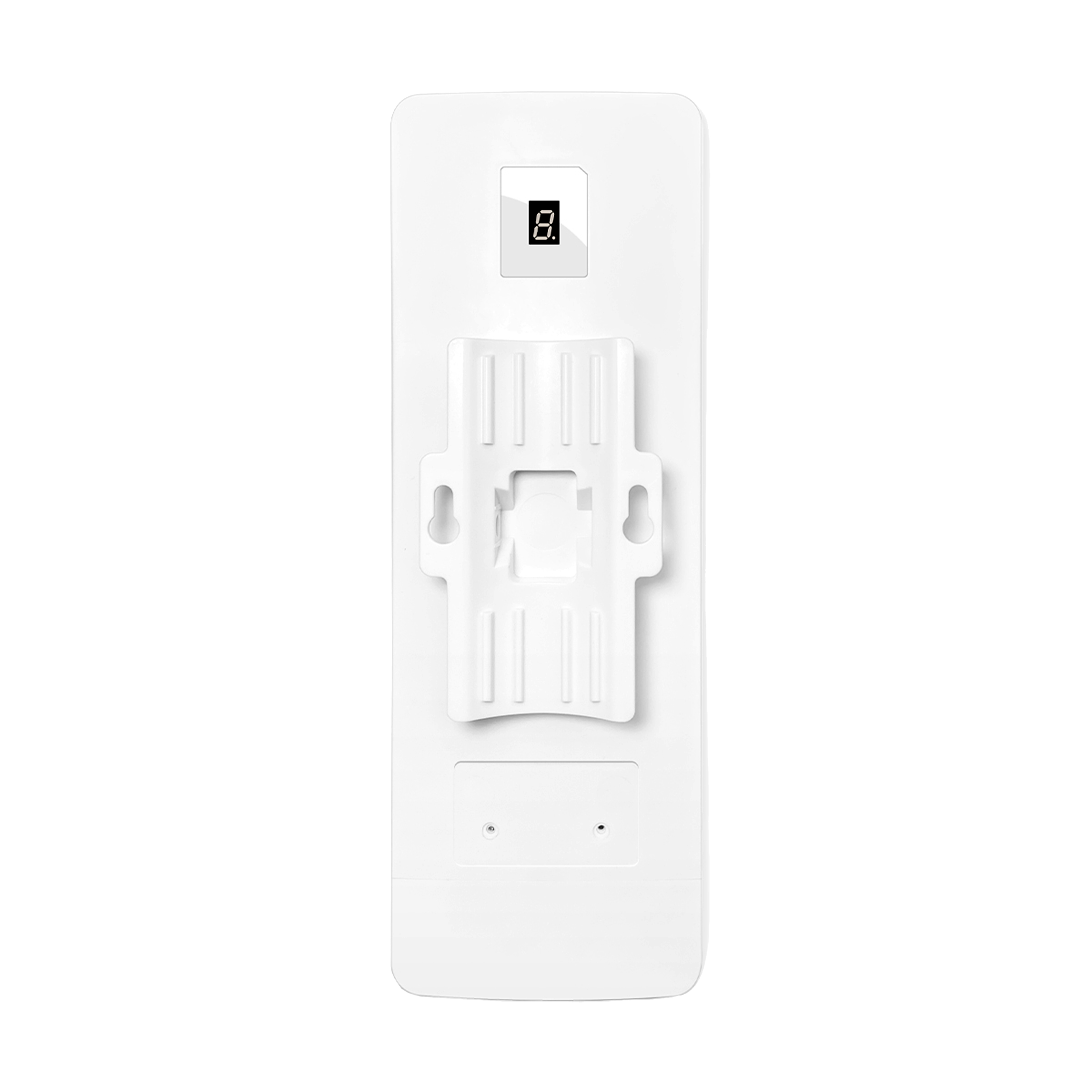

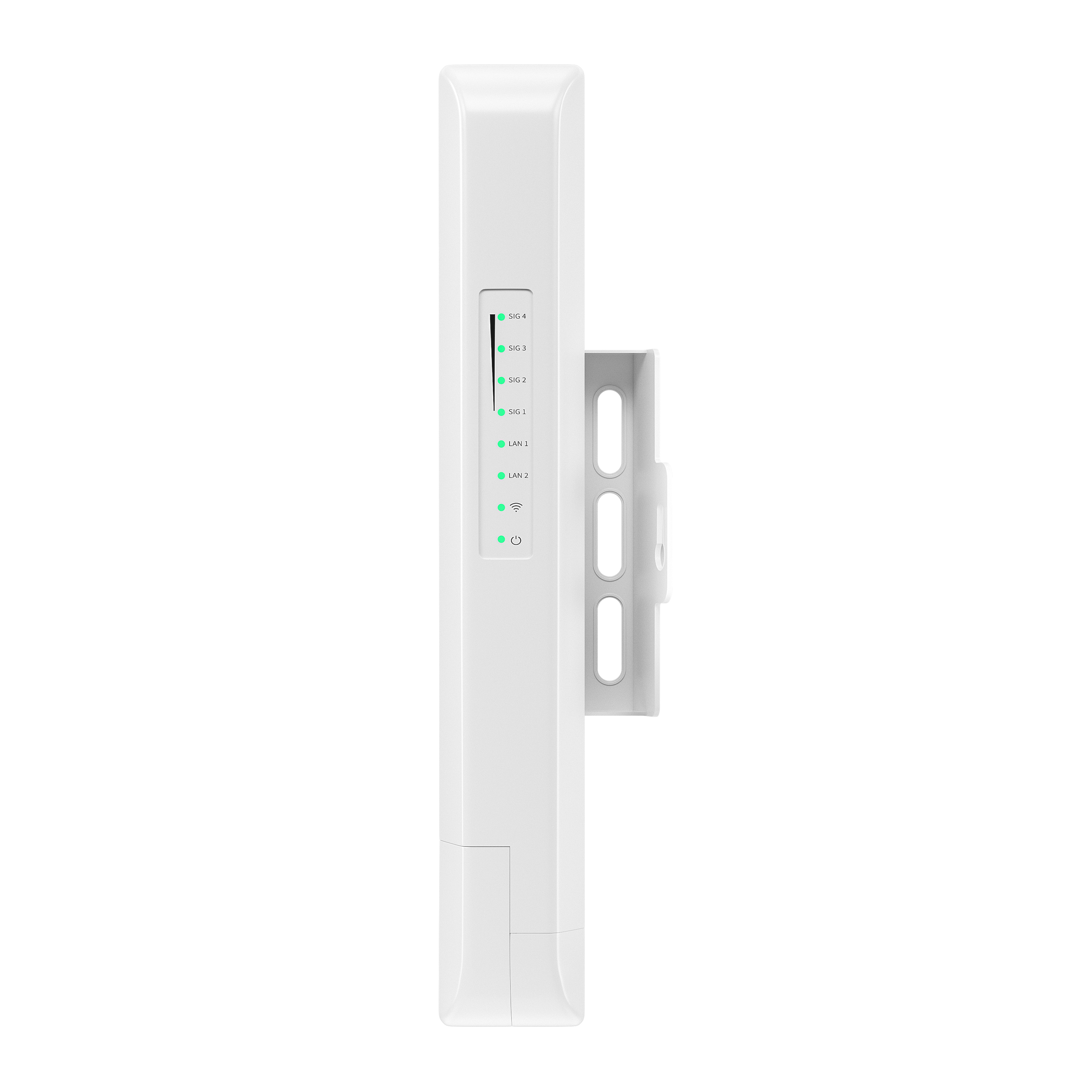

• Small fashion, easy to install

Small appearance vogue, installation is simple, flexible wall hanging, a variety of installations, such as suction a top without affecting the original design, on the basis of greatly reduce the construction difficulty of construction personnel, improve the construction efficiency.

Hardware Configuration
Model	NB50
Frequency	560MHz
Wireless technology	5G, 450M, 802.11ac MIMO technology
Memory	64MB DDR RAM
Flash	8MB
Network interface	2*10/100Mbps Adaptive Network Interface
Button	1*Reset, Press and hold for 15 seconds to restore factory settings

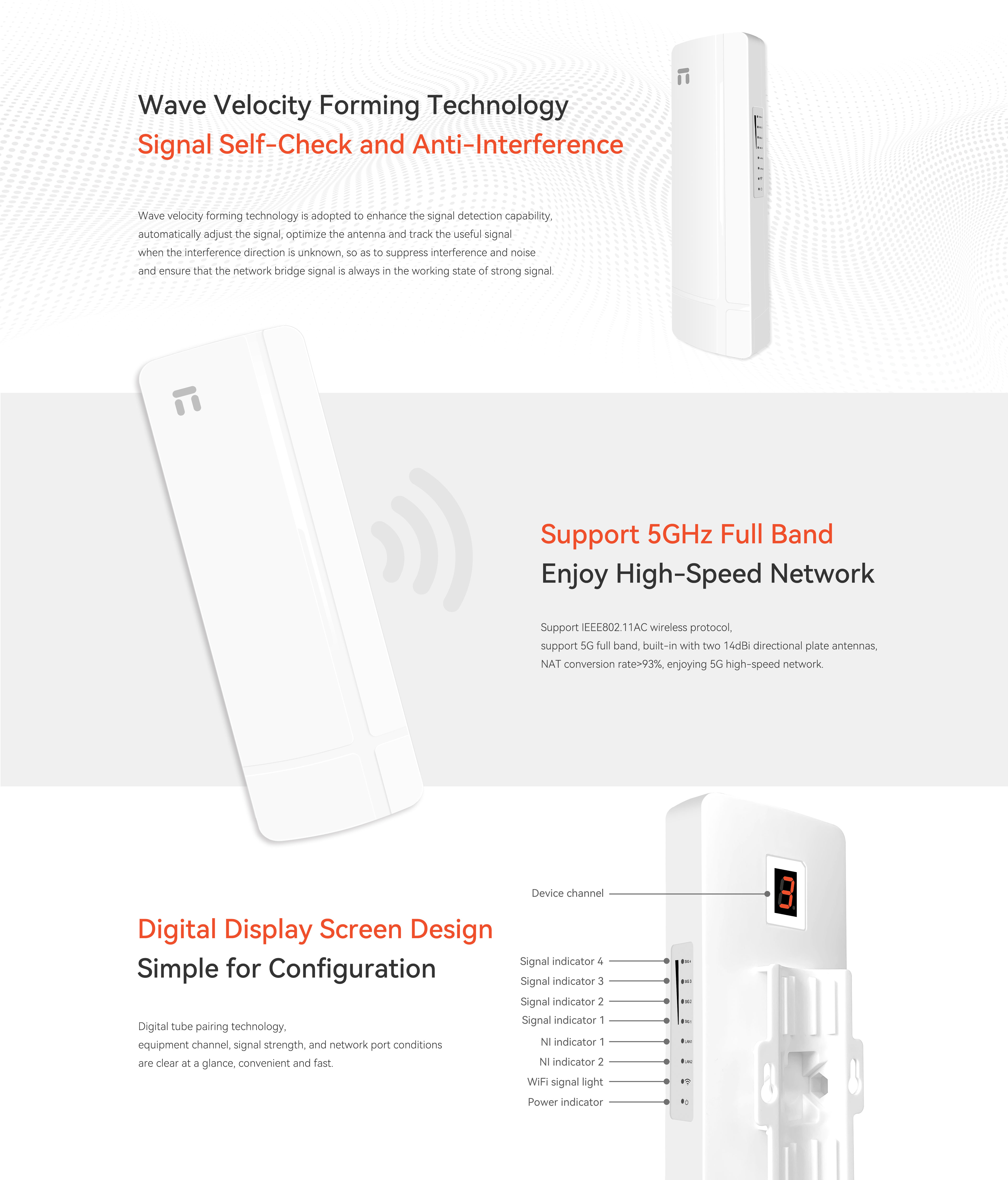

Indicator light	Signal SIG indicator, ETH network interface status indicator, power indicator lamp, digital tube indicator lamp
Power supply	24V 0.5A non-standard POE power supply, DC 12V 1A, power consumption <10W
Working conditions	Temperature:-40°C～+55°C(work),-40°C～+70°C(Storage) Humidity (non-condensing): 5% to 90% (working), 5% to 95% (storage)
Product size	Length 188mmWidth 188 mmHeight 33 mm
Product weight	N/A
Antenna	Built-in dual polarized high gain directional antenna (14dBi plate wave angle of 60 degrees, 60 degrees vertical wave width)
Radio frequency characteristics
Frequency Range	ISM band: 4.900GHz ~ 5.850GHz
Channel distribution	5G：36、40、44、48、52、56、60、64、149、153、157、161、182、186、190、194
Modulation method	OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Output Power	11a @54M:25±2DB, @6M:27±2DB 11n @MCS7:23±2DB, @MCS0:25±2DB
Receiver sensitivity	11a: 72dbm@54Mbps, -90dbm@6Mbps 11n: -70dbm@MCS7, -90dbm@MCS0s
EVM	802.11n: ≤-28 DB 802.11a: ≤-25 DB
Frequency deviation	±20ppm
Fat AP version software features
Operating mode	Main AP mode,Slave AP mode
Networking mode	Point to point and point to multipoint (within 8 points)
Internet	Bridge: static IP/ DHCP Gateway: static IP/ DHCP/PPPoE
Bridge Management	Free binding cloud account, real-time remote management device
Wireless management	Bridge configuration / advanced configuration /WiFi settings
System	Time zone time configuration, login password modification, backup /restore, restart / timed restart
System update	Based on WEB browser local update, online update
