Hardware
|
Interface
|

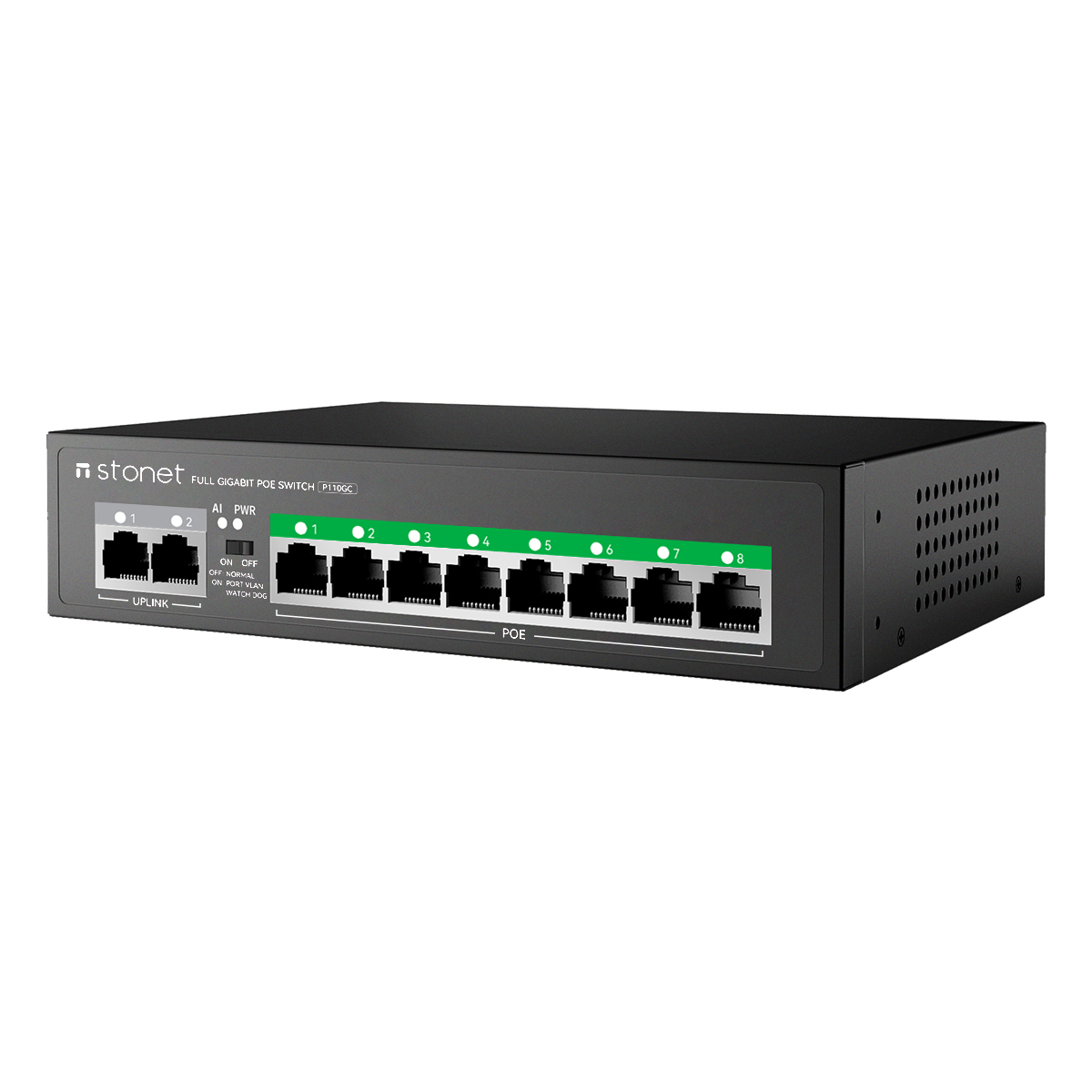

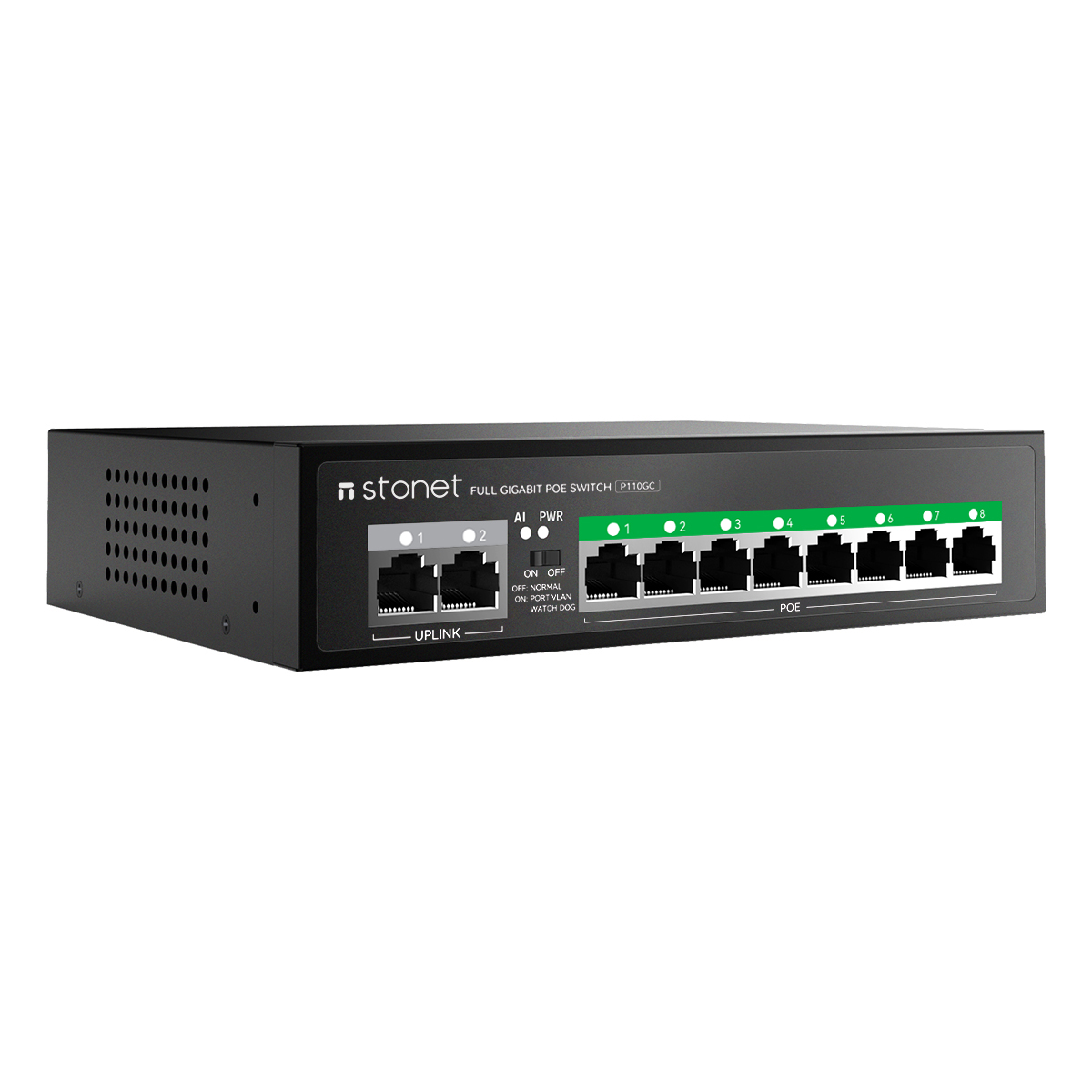

8×10/100/1000Mbps POE ports(Data/Power)
2×10/100/1000Mbpsuplink RJ45 ports (Data)
|
Basic function
|
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802. 3af/at compliant Powered Device (PD)
Store-and-forward switching scheme
Support IEEE802.3X full duplex and Backpressure half duplex
MAC address auto-learning & auto-aging
|
Standards
|
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af/at, Power over Ethernet
IEEE 802.3x Flow Control
|
Mode
|
Normal switch mode
|
Data Transfer Rate
|
Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex)
Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex)
Gigabit Ethernet :2000Mbps(Full-duplex)
|
Store & Forwarding
|
Yes
|
Switching Capacity
|
20G
|
MAC Address
Table Size
|
8K
|
Jumbo Frame
|
2048 byte
|
Environment
|
Operation Temperature:0℃~40℃
Storage Temperature:-40℃~70℃
Operation Humidity:10%~90% RH Non-condensing
Storage Humidity:5%~90% RH Non-condensing
|
Power Input POE
Standards
|
Single port maximum power 30W,
Whole switch maximum power 120W
Support over-current,over-voltage and short-circuit protection
Support Soft Start of High Power PD
Support sequential boot-up
Power Supply Pin:12+/36-
AC 110~240V 50/60HZ
|
Cabling type
|
1000Base-TX: Cat 5e or better UTP/STP(≤100m)
100Base-TX: Cat 5e or better UTP/STP(≤100m)
10Base-TX: Cat 5e or better UTP/STP(≤250m)
|
Dimensions
(L x W x H )
|
190mm*140mm*43mm
|
