Wireless
|
Standards
|
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
Signal Rate
|
Up to 300Mbps
|
Frequency Range
|
2.4-2.4835GHz
|
Transmit Power
|
23dBm(MAX)
|
Data Transfer Rates
|
802.11n:
40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
802.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
|

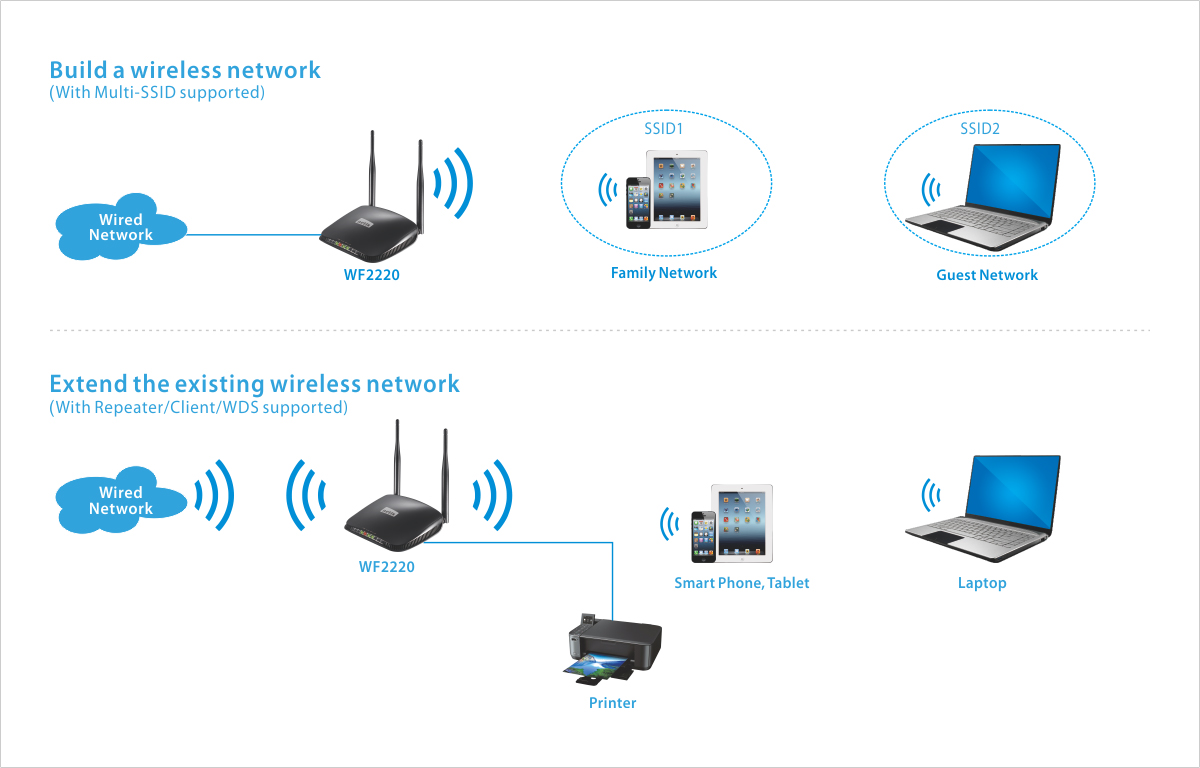

Wireless Modes
|
AP, Repeater,WDS, Multi-SSID(VLAN)
|
Wireless Security
|
64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
Wireless MAC Filtering
|
Hardware
|
Standards
|
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
|

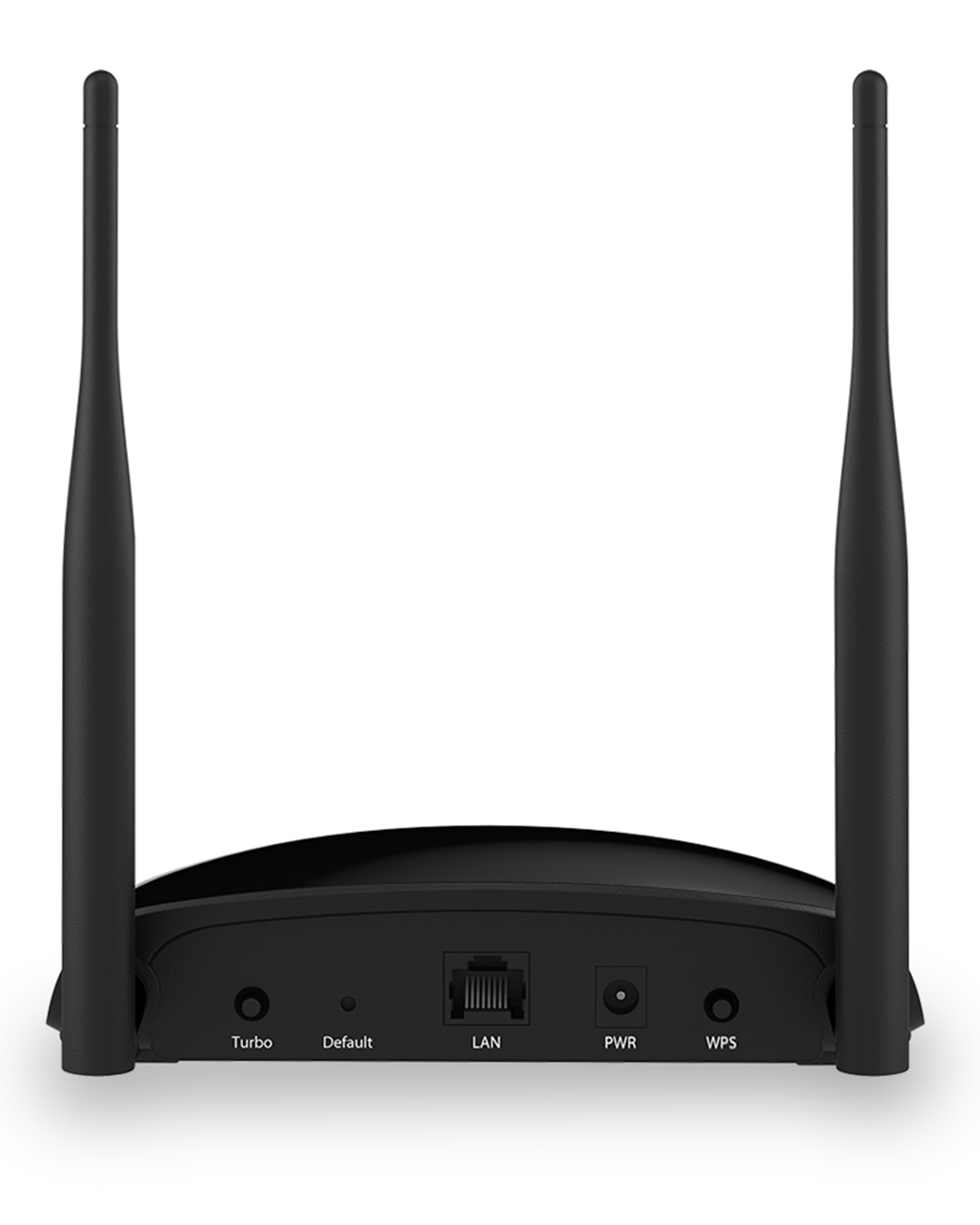

Interface
|
1 * 10/100Mbps Auto MDI/MDIX RJ45 LAN port, Passive PoE Supported
|

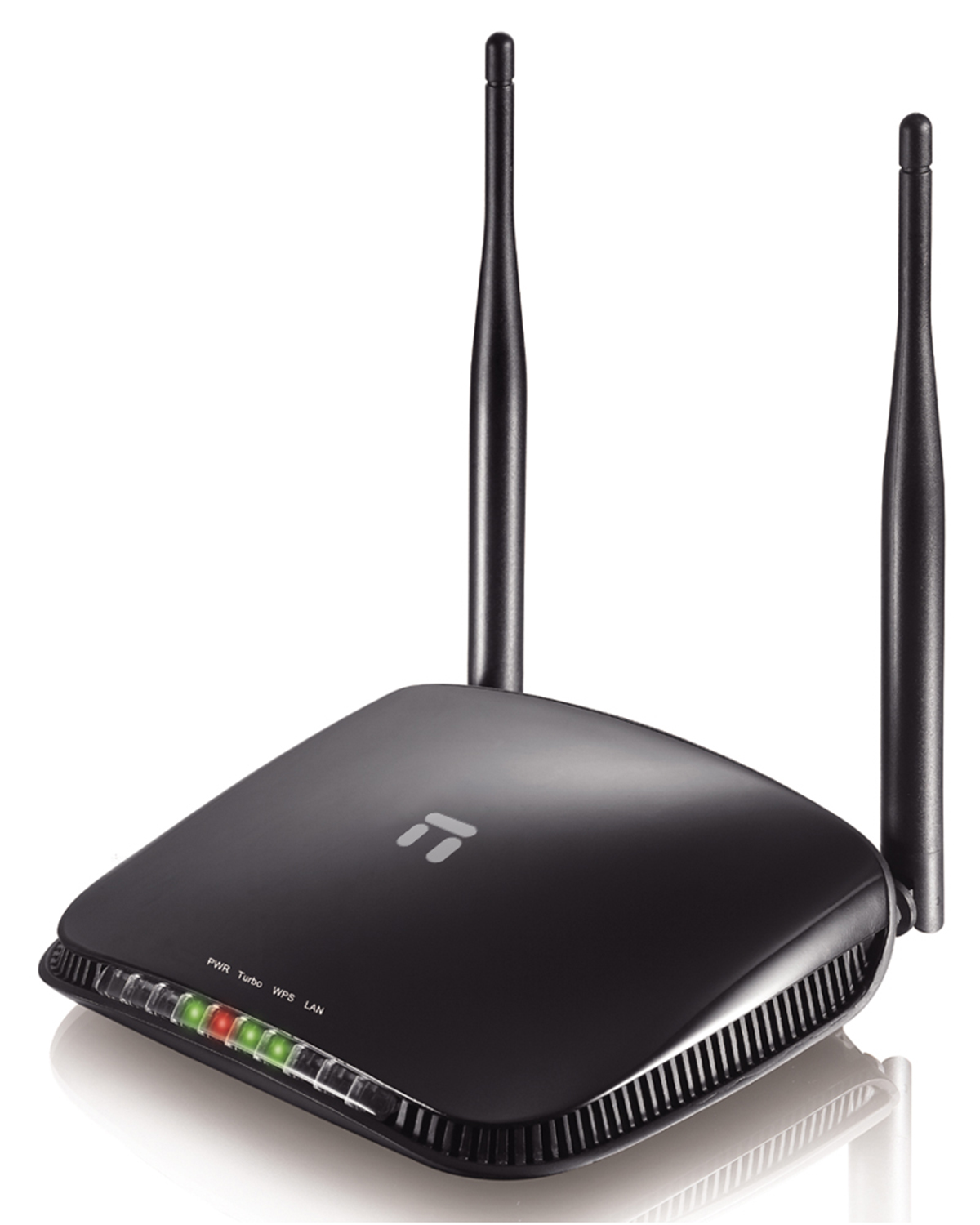

LED Indicators
|
PWR, Turbo, WPS, LAN
(Turbo LED Status: Blue for Normal Power, Red for High Power)
|
Buttons
|
Turbo, Default, WPS
|
Antenna
|
2* 5dBi Detachable Antenna, SMA Connector
|
Power Supply
|
DC 12V/1A (Output)
|
Software
|
LAN
|
DHCP Client, DHCP Server
|
Others
|
Time Settings,Firmware Upgrade, Backup & Restore
|
Others
|
Certification
|
FCC, CE
|
Environment
|
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
Package
|
1* WF2220
1* 12V/1A Power Adapter
1* PoE Power Injector
1* Ethernet Cable
1* Quick Installation Guide
|
