Wireless
|
|
Standards
|
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
|
Signal Rate
|
Up to 300Mbps
|
|
Frequency Range
|
2.4-2.4835GHz
|
|
Transmit Power
|
20dBm(MAX)
|
|
Data Transfer Rates
|
802.11n:
40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
802.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
|
|
Wireless Modes
|
AP, Repeater, AP+WDS, WDS, Client, Multi-SSID
|
|
Wireless Security
|
64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
Wireless MAC Filtering
|
|
Hardware
|
|
Standards
|
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
|
|

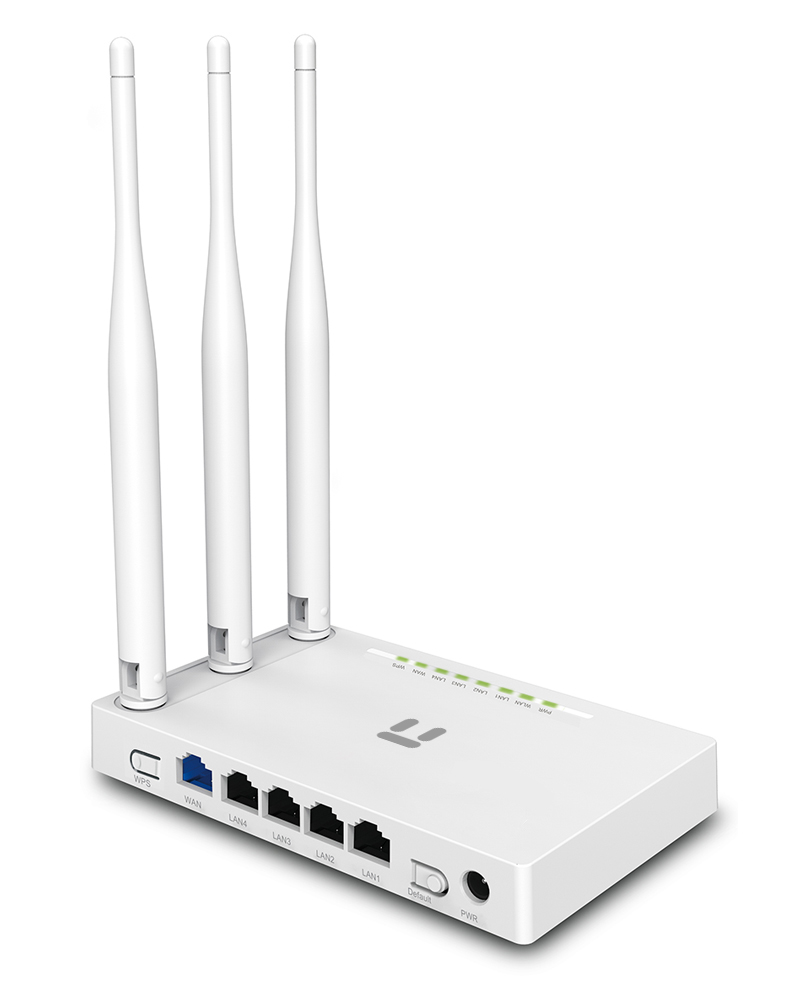

Interfaces
|
1 * 10/100Mbps Auto MDI/MDIX RJ45 WAN port
4 * 10/100Mbps Auto MDI/MDIX RJ45 LAN port
|
|
LED Indicators
|
PWR, WLAN, LAN1-LAN4, WAN, WPS
|
|
Buttons
|
WPS, Default
|
|

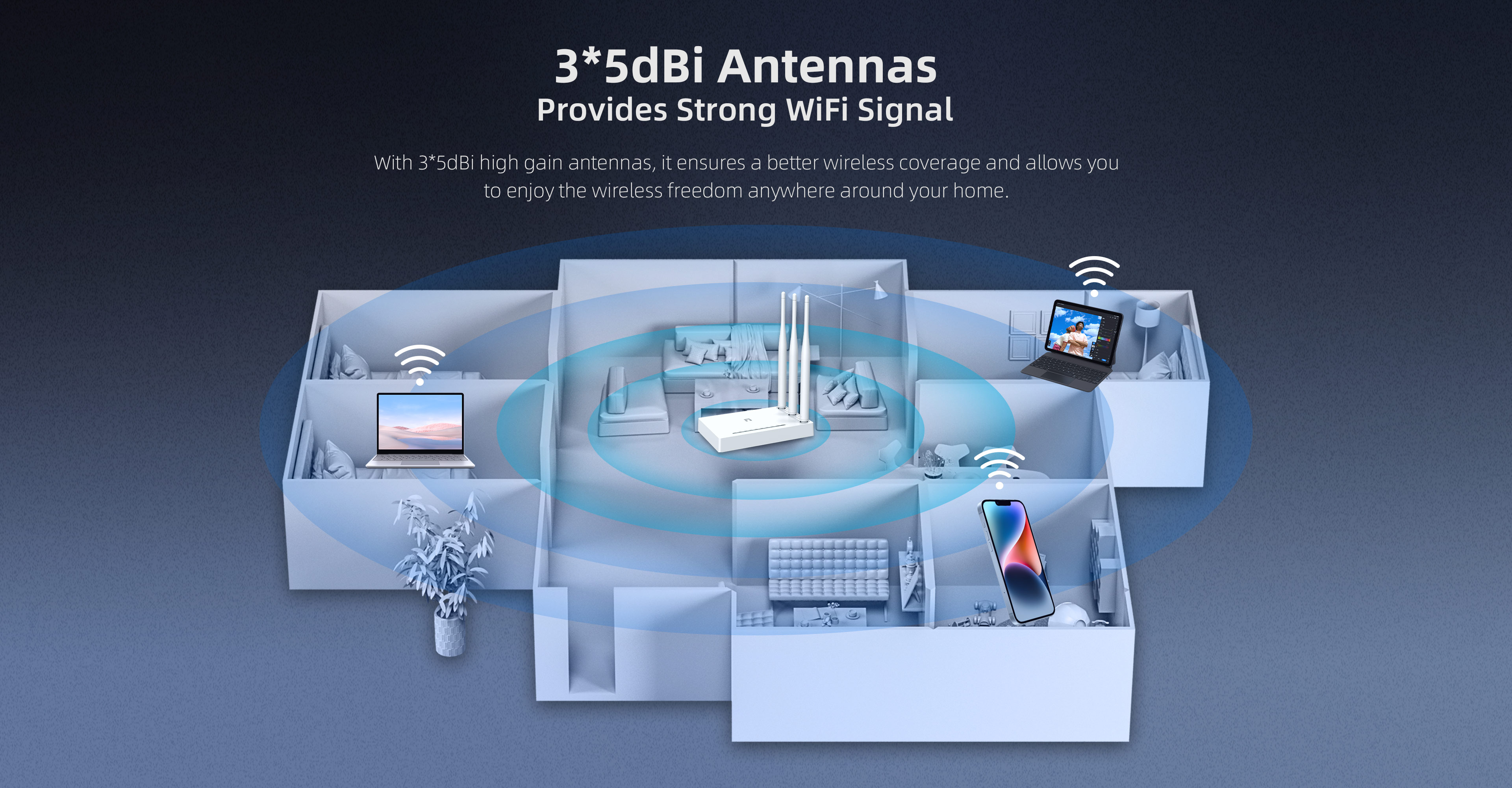

Antennas
|
3* 5dBi Fixed Antenna
|
|
Power Supply
|
DC 9V/500mA (Output)
|
|
Software
|
|
WAN Type
|
DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP
|
|
Port Forwarding
|
Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port
|
|
QoS
|
WMM, Bandwidth Control
|
|
Access Control
|
IP/MAC/Domain Filtering
|
|
VPN Pass-through
|
PPTP, L2TP, IPSec
|
|
Others
|
IPTV, Dynamic DNS, Static Routing, WOL, Backup & Restore, Firmware Upgrade
|
|
Others
|
|
Certification
|
FCC, CE
|
|
Environment
|
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
Package
|
1* WF2409E
1* 9V/500mA Power Adapter
1* Ethernet Cable
1* Quick Installation Guide (Multilingual)
|
