Wireless
|
Standards
|
IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz
|
Signal Rate
|
Up to 300Mbps2.4GHz
UP to 867Mbps 5GHz
|
Frequency Range
|
2.4-2.4835GHz;5.180-5.825GHZ
|
Transmit Power
|
19dBm(MAX)
|
Data Transfer Rate
|

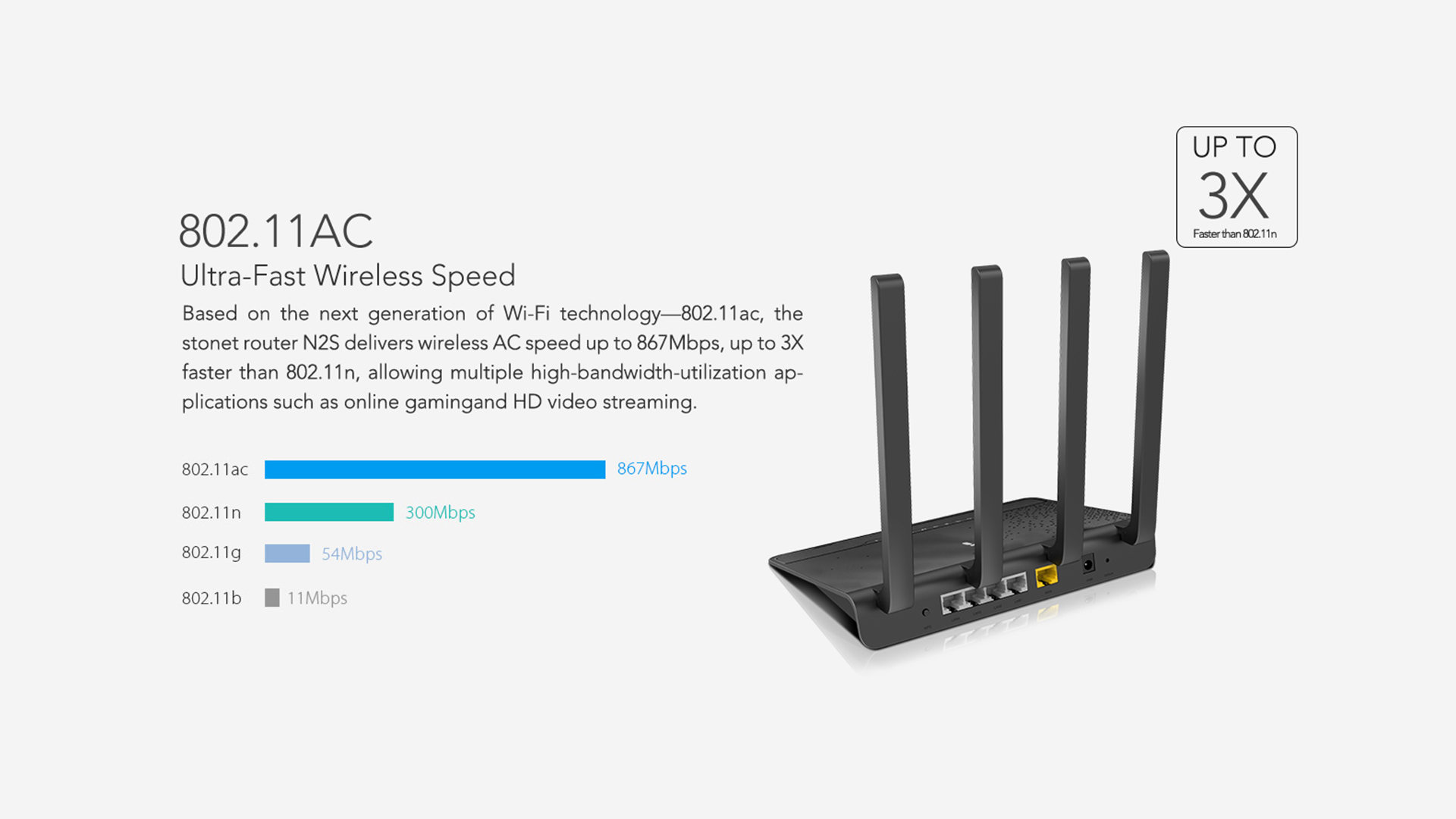

802.11ac:
80MHZ(433Mbps, 867Mbps)
802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
802.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
|
Wireless Modes
|
AP, Repeater, Client modes
|
Wireless Security
|
None / WEP / WPA-PSK / WPA2-PSK / WPA2-Mixed
|
Hardware
|
Standards
|
IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz
|

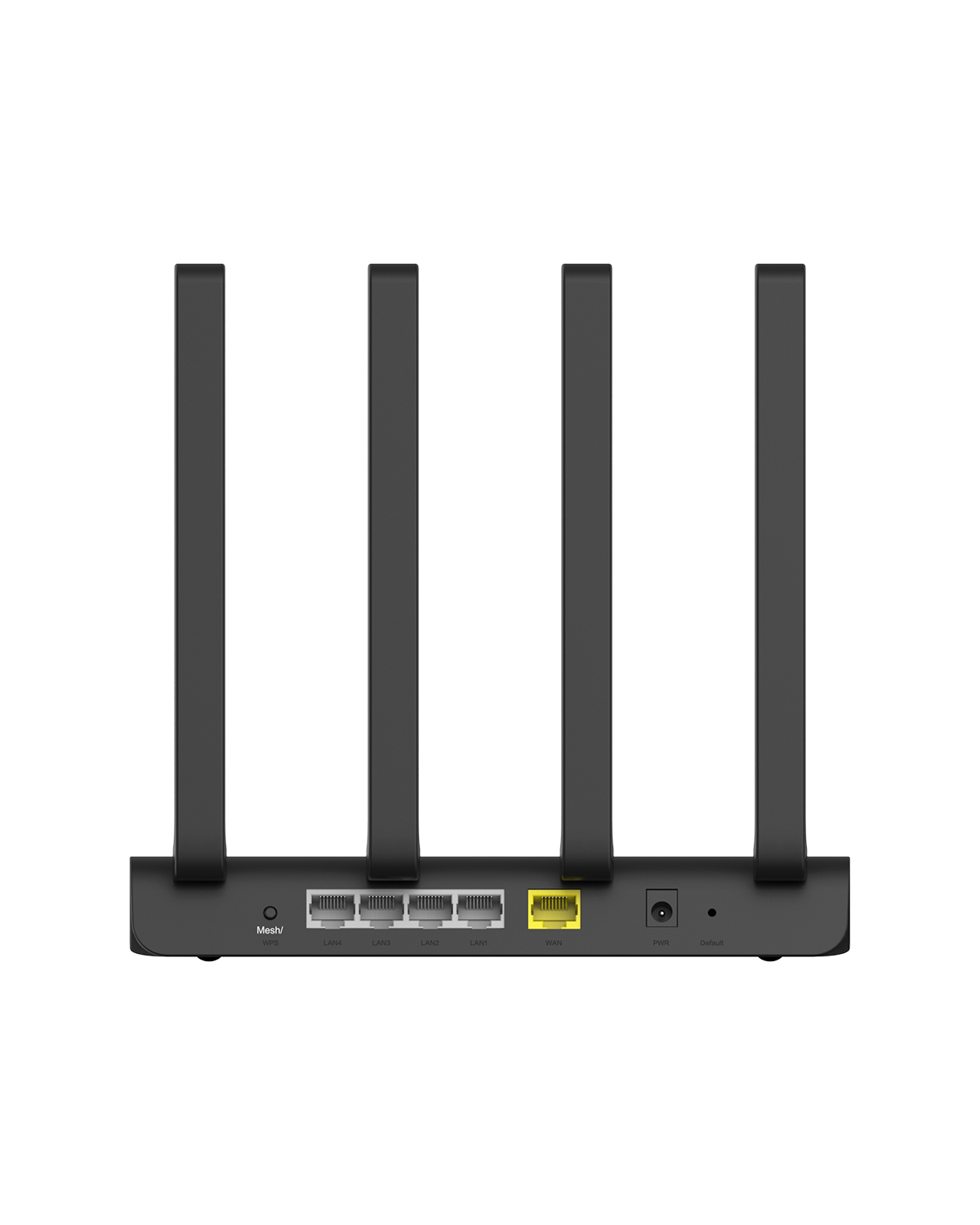

Interface
|
1*10/100/1000Mbps RJ45 WAN port
4*10/100/1000Mbps RJ45 LAN port
|
LED Indicators
|
Power / LAN / WAN / WLAN2.4G / WLAN5G / WPS / Zigbee
|
Buttons
|
Default, WPS
|
Antenna
|
4* external fixed 5dBi antenna
|
Power Supply
|
DC 12V/1.0A(Output)
|
Dimensions (L x W x H )
|
212mm x 145mm x 40 mm
|
Software
|
WAN Type
|
DHCP / Static IP / PPPoE / Russia PPPoE / L2TP / PPTP / 3G&4G
|
Others
|
Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
VPN Pass-through, Dynamic DNS, Static Routing, Backup & Restore
|
Others
|
Certification
|
FCC, CE, EAC
|
Environment
|
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
Package
|

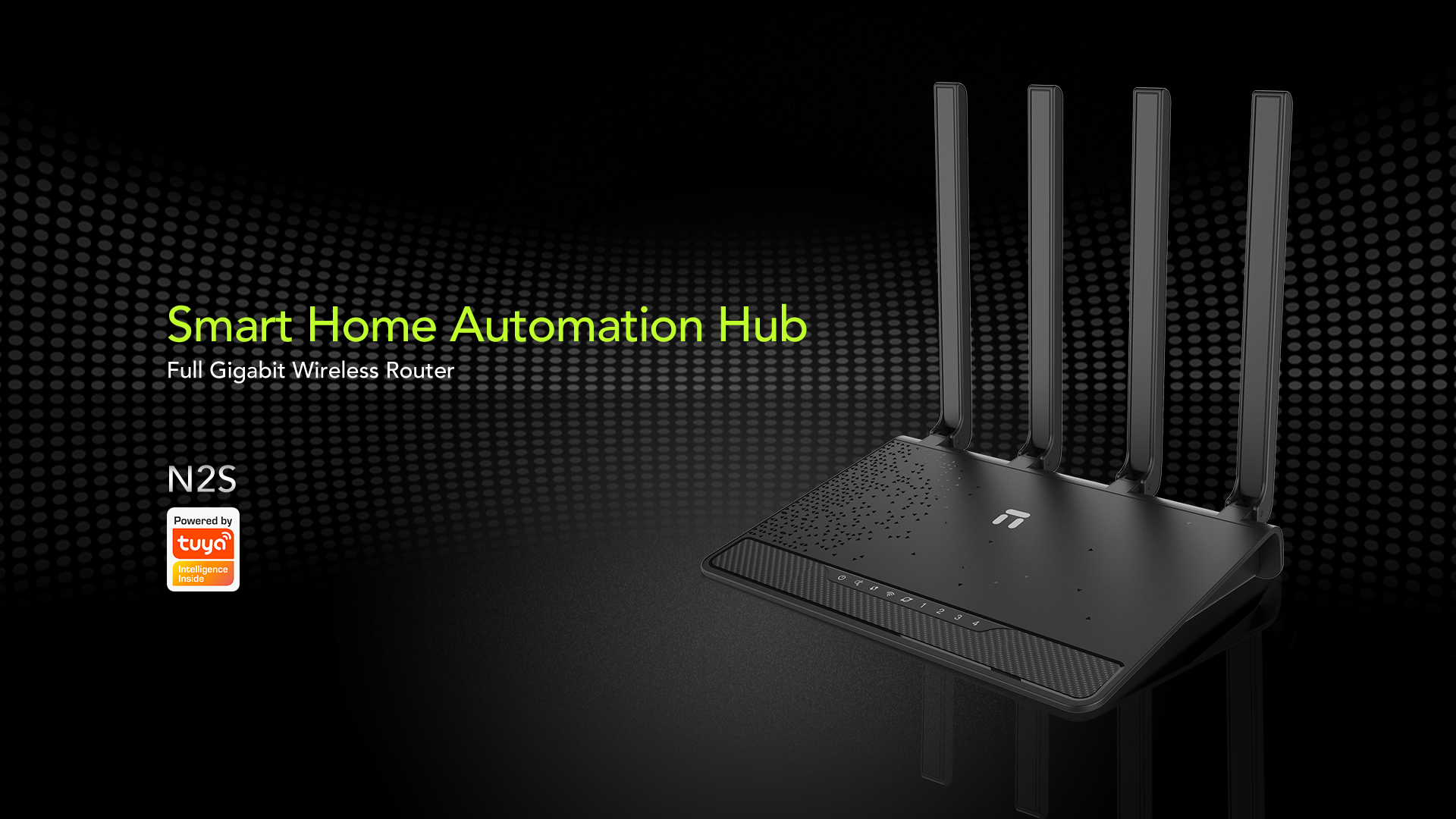

1* N2S
1* 12V/1.0A Power Adapter
1* Ethernet Cable
1* Quick Installation Guide (Multilingual)
|
