WIRELESS
|
Standards
|
Wi-Fi 5
IEEE 802.11ac/n 5 GHz
IEEE 802.11n/b/g 2.4 GHz
|
WiFi Speeds
|
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
|
WiFi Range
|
3 Bedroom Houses
4x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM Improves transmission power to strengthen signal coverage
|
WiFi Capacity
|
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 5/4 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams Connect your devices to more bandwidth
|
Working Modes
|
AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode
|
HARDWARE
|
Processor
|
1GHz CPU
|
Main Chipset
|
RTL8197FH-VG5+8812FR+8367RB-VC
|
DDR/FLASH
|
128MB/8MB
|
Interface
|

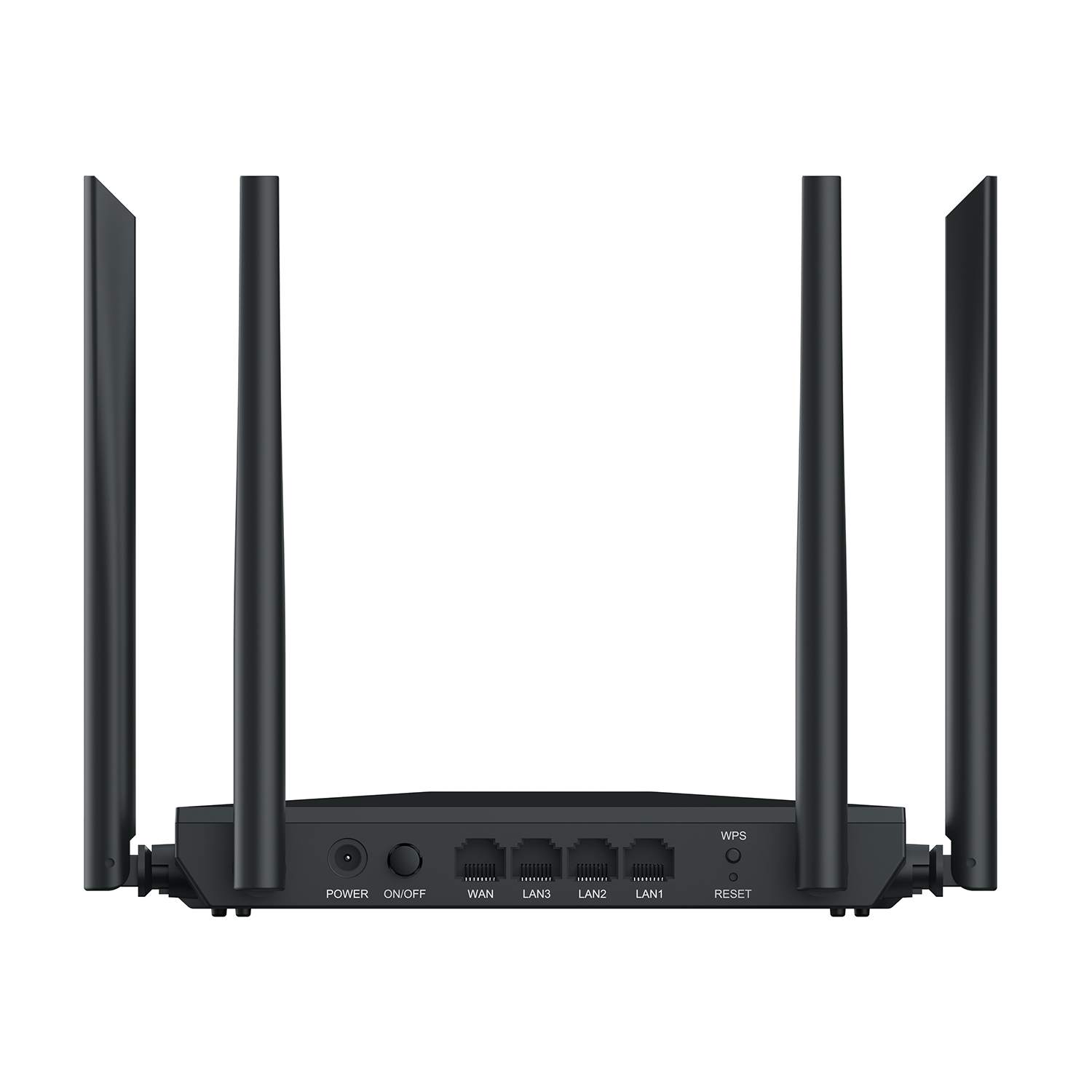

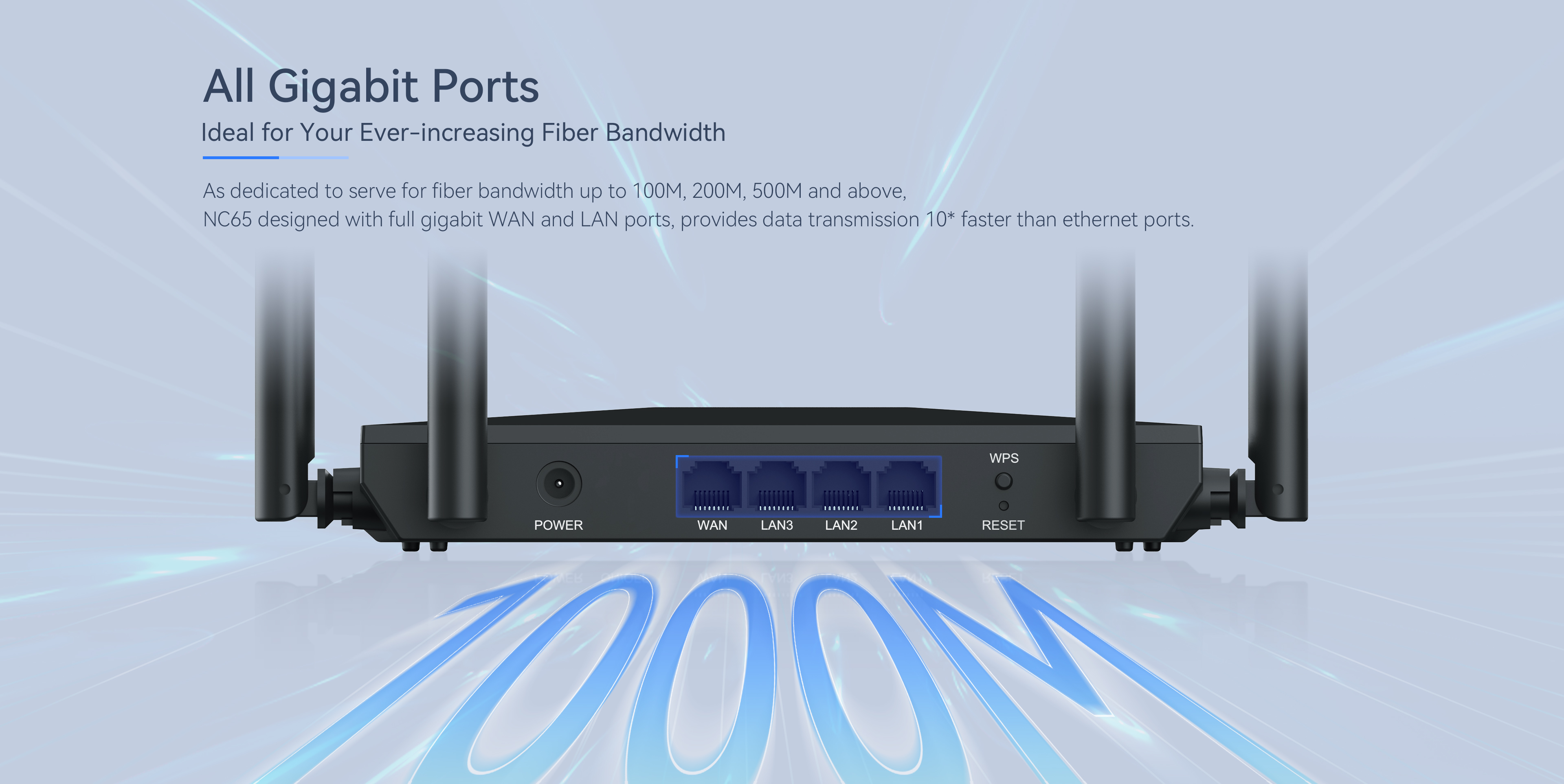

1x Gigabit WAN Port + 3x Gigabit LAN Ports
|
Buttons
|
WPS/MESH、RESET
|
Power
|
12V1A
|
SOFTWARE
|
WiFi Encryption
|
WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
|
Network Security
|
Access Control, IP & MAC Binding
|
Guest Network
|
4*5GHz Guest Network /4*2.4GHz Guest Network
|
Protocols
|
IPv4, IPv6
|
WAN Types
|
DHCP, Static IP, PPPoE, L2TP, PPTP
|
Quality of Service
|
QoS by Device
|
Forwarding
|
Virtual Servers, DMZ, UPnP
|
IPTV
|
Bridge, Tag VLAN
|
DHCP
|
Address Reservation, DHCP Client List, DHCP Server
|
Access Control
|
IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering
|
Dynamic DNS
|
DynDns, no-ip
|
IGMP
|
IGMP Proxy, IGMP Snooping
|
VPN
|
PPTP Pass-through, L2TP Pass-through, IPSEC Pass-through, SIP Pass-through
|
Others
|

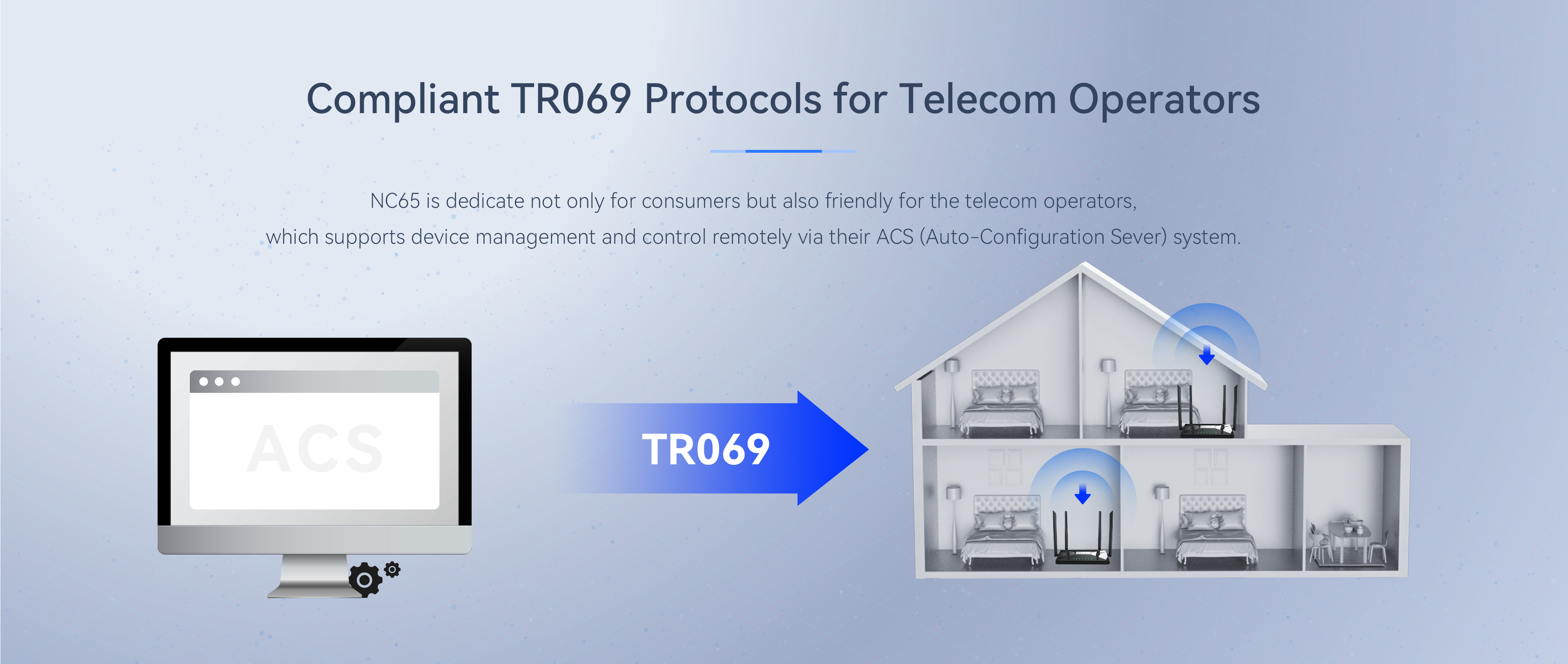

Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore
|
PHYSICAL
|
Dimensions(W×D×H)
|
228*134*188mm
|
Package Contents
|

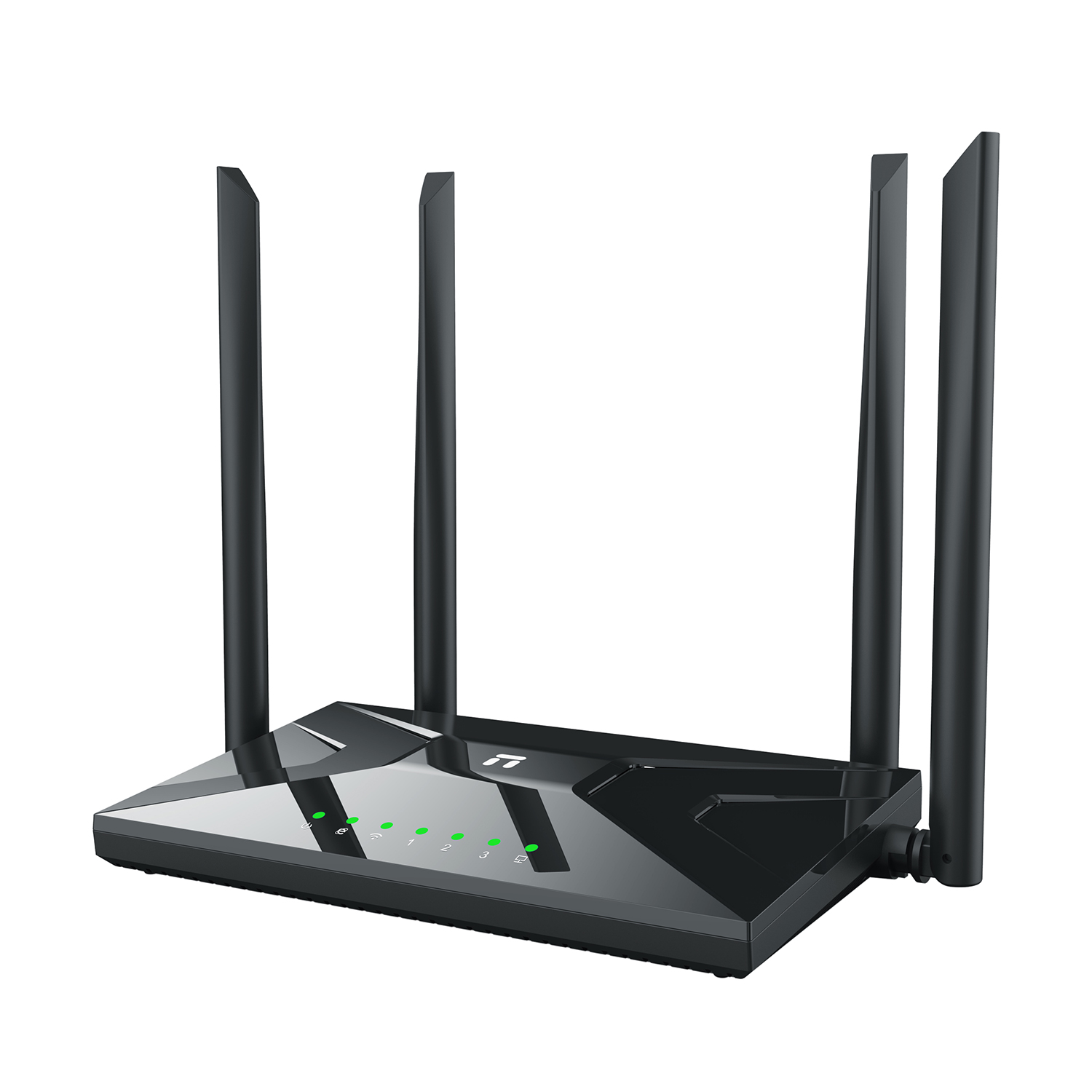

1* NC65
1* Power Adapter
1* RJ45 Ethernet Cable
1* Quick Installation Guide
|
