WiFi 5

 IEEE802.11ac/n  5GHz

 IEEE802.11b/g/n  2.4GHz

 AC1200

 5GHz:     867 Mbps (802.11ac)

 2.4GHz:  300 Mbps (802.11n)

 WiFi Range

 3 Bedroom Houses

 4x Fixed High-Performance Antennas

 Multiple antennas form a signal-boosting array to cover more directions and large areas

 Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

 High-Power FEM Improves transmission power to strengthen signal coverage

 WiFi Capacity

 Allocate devices to different bands for optimal performance

 OFDM

 Simultaneously communicates with multiple Wi-Fi 5/4 clients

 Airtime Fairness

 Improves network efficiency by limiting excessive occupation

 4 Streams Connect your devices to more bandwidth

 Working Modes

 AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode

 HARDWARE

 1GHz CPU

 Main Chipset

 RTL8197FH-VG5+RTL8812FR

 DDR/FLASH

 128MB/8MB

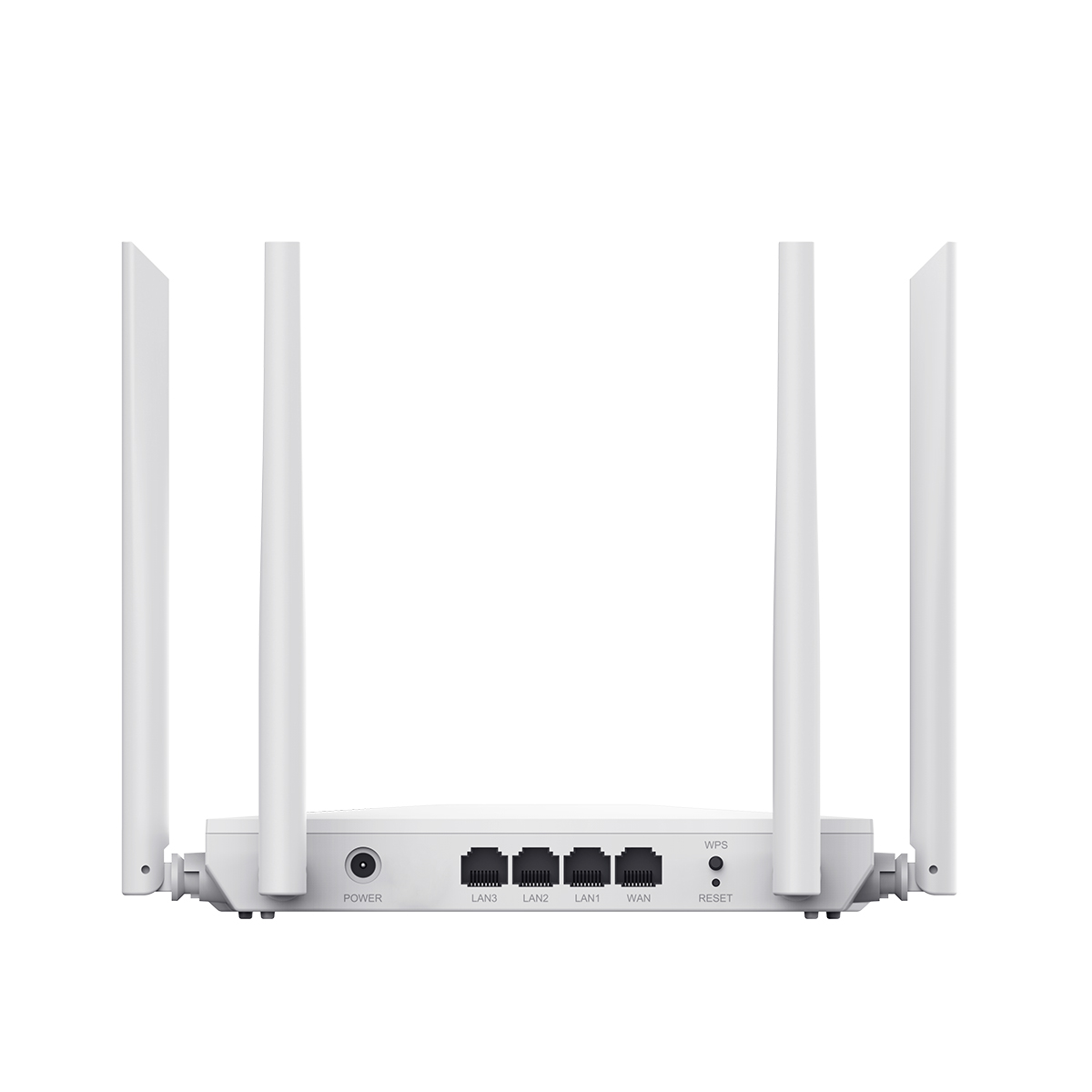

 Interface

 1x Fast WAN Port + 3x Fast LAN Ports

 Buttons

 WPS、RESET

 Power

 12V1A

 SOFTWARE

 WiFi Encryption

 WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

 Network Security

 Access Control, IP & MAC Binding

 Guest Network

 4*5GHz Guest Network /4*2.4GHz Guest Network

 Protocols

 IPv4, IPv6

 WAN Types

 DHCP, Static IP, PPPoE, L2TP, PPTP

 QoS by Device

 Forwarding

 Virtual Servers, DMZ, UPnP

 Bridge, Tag VLAN

 DHCP

 Address Reservation, DHCP Client List, DHCP Server

 Access Control

 IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering

 Dynamic DNS

 DynDns, no-ip

 IGMP Proxy, IGMP Snooping

 PPTP Pass-through, L2TP Pass-through, IPSEC Pass-through, SIP Pass-through

 Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore

 PHYSICAL

 Dimensions(W×D×H)

 228*134*188mm

 Package Contents

 1* NC21

 1* Power Adapter

 1* RJ45 Ethernet Cable

  1* Quick Installation Guide
