Wireless
|
Standards
|
IEEE 802.11b/g/n/ac/ax
|

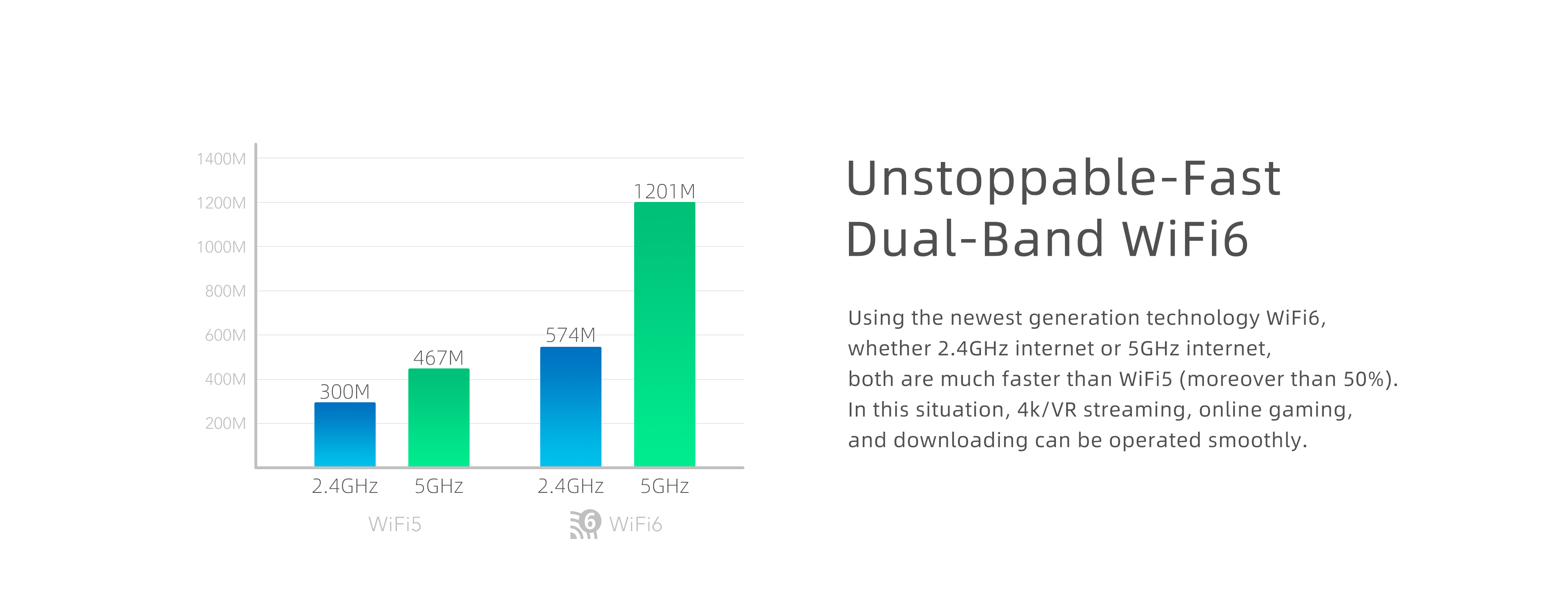

Signal Rate
|
Up to 574Mbps 2.4GHz
UP to 1201Mbps 5GHz
|
Frequency Range
|
2.4-2.4835GHz;5.180-5.825GHZ
|
Transmit Power
|
20dBm(MAX)
|
Data Transfer Rate
|
802.11ax:
2.4GHz, 40MHz(574Mbps) 5GHz, 80MHz(1201Mbps)
802.11ac:80MHZ(433Mbps, 867Mbps)
802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto- Sense)
802.11g:(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
|
Wireless Modes
|
AP, ARP, Multi-SSID
|
Wireless Security
|
WEP/WPA-PSK/WPA2-PSK Encryption/WPA3
Wireless MAC Filtering
|
Hardware
|
Standards
|
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
|

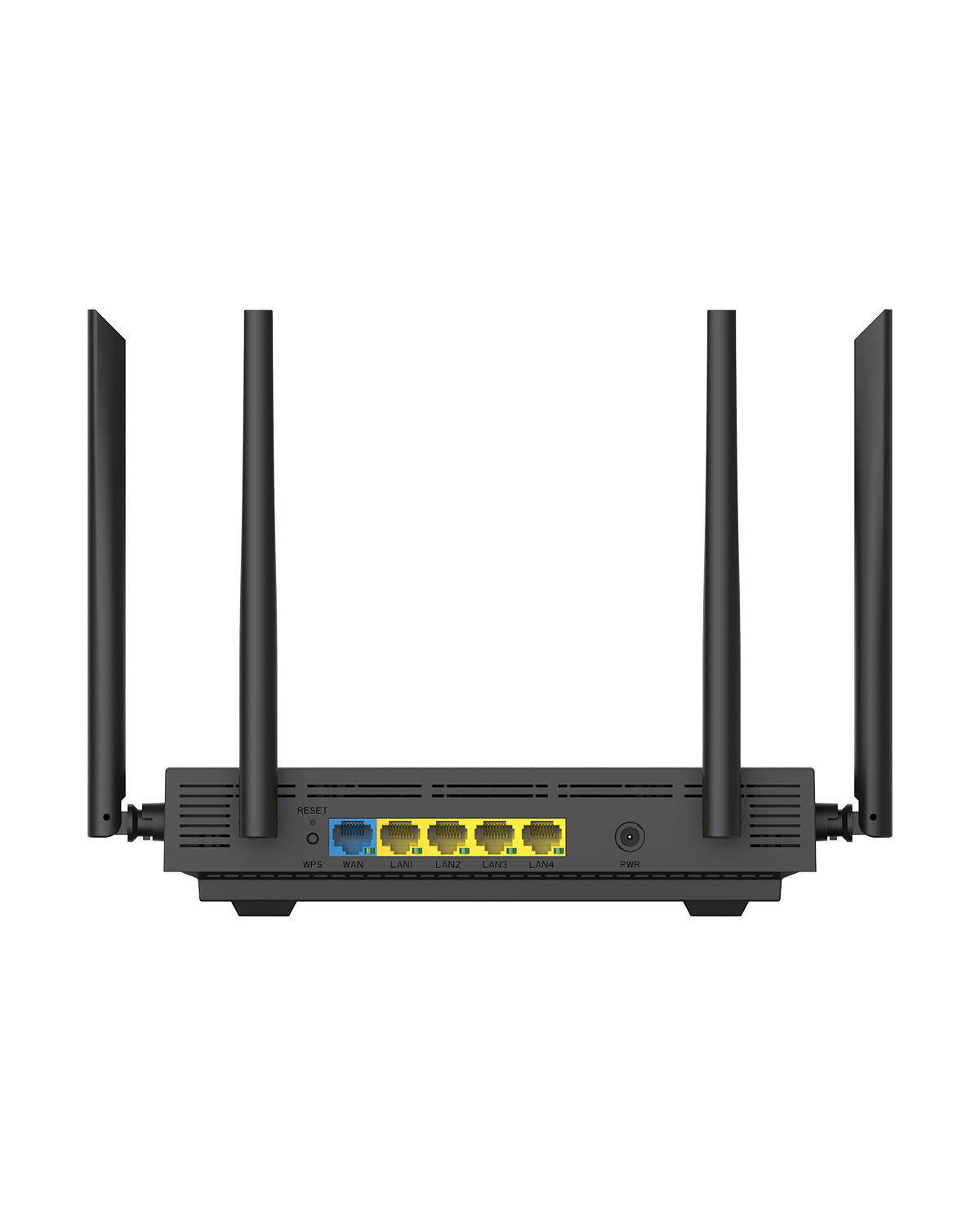

Interface
|
1×10/100/1000Mbps Auto MDI/MDIX RJ45 WAN port
4×10/100/1000Mbps Auto MDI/MDIX RJ45 LAN port
|
LED Indicators
|
Power,LAN1-2,WAN,WLAN2.4G,WLAN5G,WPS
|
Buttons
|
WPS,Reset
|
Antenna
|
4× external fixed 5dBi antenna
|
Power Supply
|
DC 12V/1.5A(Output)
|
Dimensions (L x W x H )
|
236mm×144mm×50 mm (body)
|
Software
|
WAN Type
|
DHCP, Static IP, PPPoE, L2TP, PPTP
|
Others
|
Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
VPN Pass-through, Dynamic DNS, Static Routing, Backup & Restore
|
Certification
|
FCC, CE, EAC
|
Environment
|
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
Package
|

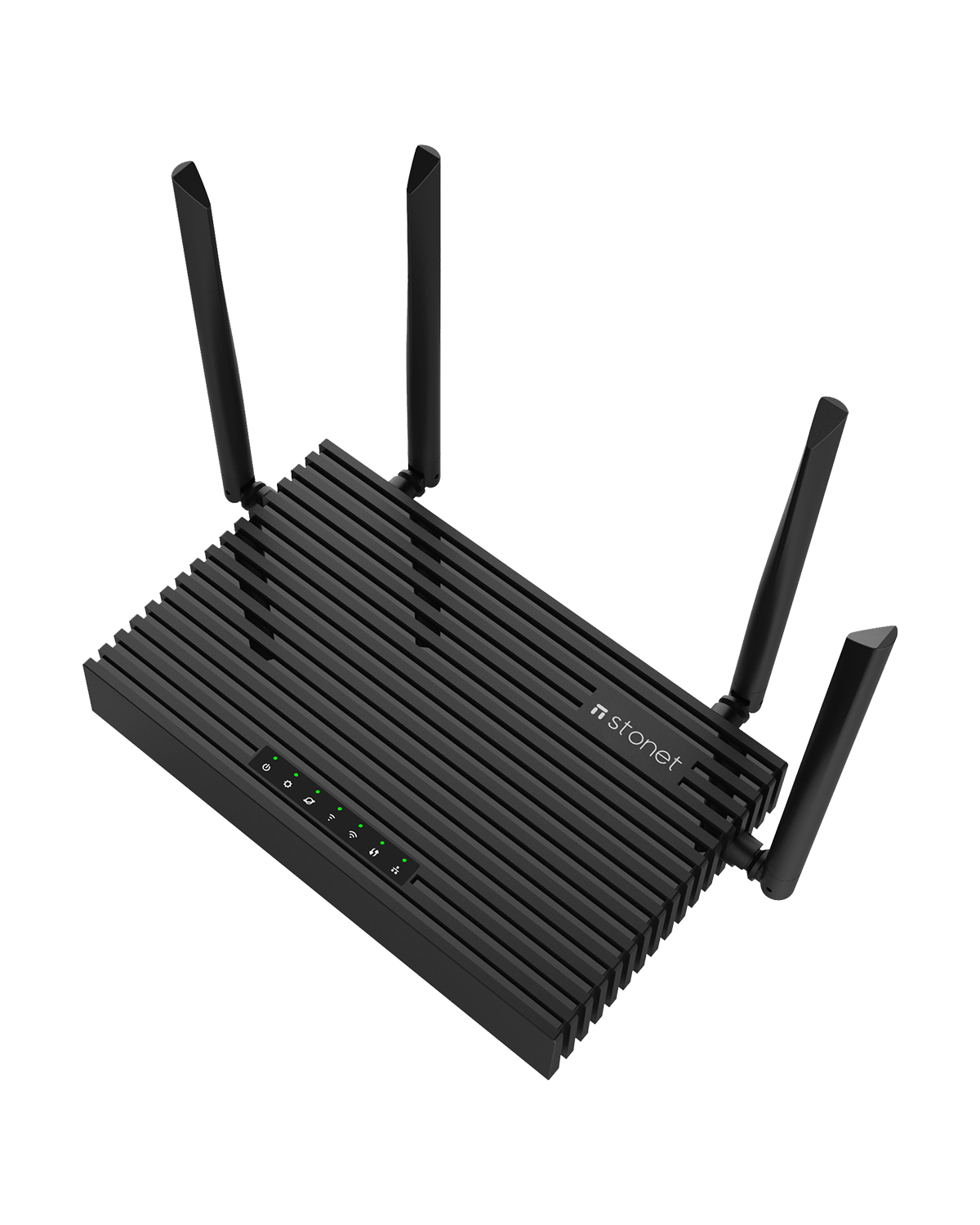

1× N6
1× 12V/1.5A Power Adapter
1× Quick Installation Guide (Multilingual)
|
