Wireless
|
Standards
|
IEEE 802.11b/g/n 2.4GHz
|
Signal Rate
|
Up to 300Mbps 2.4GHz
|
Frequency Range
|
2.4-2.4835GHz
|
Transmit Power
|
20dBm(MAX)
|
Data Transfer Rate
|
802.11n:
40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
802.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
|
Wireless Mode
|
AP/APR, Multi-SSID
|
Wireless Security
|
None / WEP /WPA-PSK/WPA2-PSK (TKIP/AES)
|
4G LTE
|
Band for LTE
|
FDD-LTE:B1/B3/B5/B8
TDD-LTE: B38/B39/B40/B41
HSPA/UMTS:B1/B5/B8
GSM/GPRS/EDGE:B3/B8
TD-SCDMA:B34/B39
EVDO/CDMA:BC0
|
Mode
|
FDD-LTE、TDD-LTE、TD-SCDMA、HSPA+、HSUPA
HSDPA、UMTS、EVDO、EDGE、GPRS、GSM、CDMA1x
|
Card Speed
|
FDD-LTE: 150 Mbps DL, 50 Mbps UL
TDD-LTE: 132 Mbps DL, 30 Mbps UL
TD-HSUPA:2.8Mbps DL
TD-HSUPA:2.2Mbps UL
DC-HSPA+:42 Mbps DL
HSPA+:21 Mbps DL
HSUPA:5.76Mbps UL
WCDMA: 384 Kbps DL, 384Kbps UL
CDMA2000 EVDO: 3.1Mbps DL, 1.8Mbps UL
EDGE: 237 Kbps DL, 118Kbps UL
|
Hardware
|
Standards
|
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
|

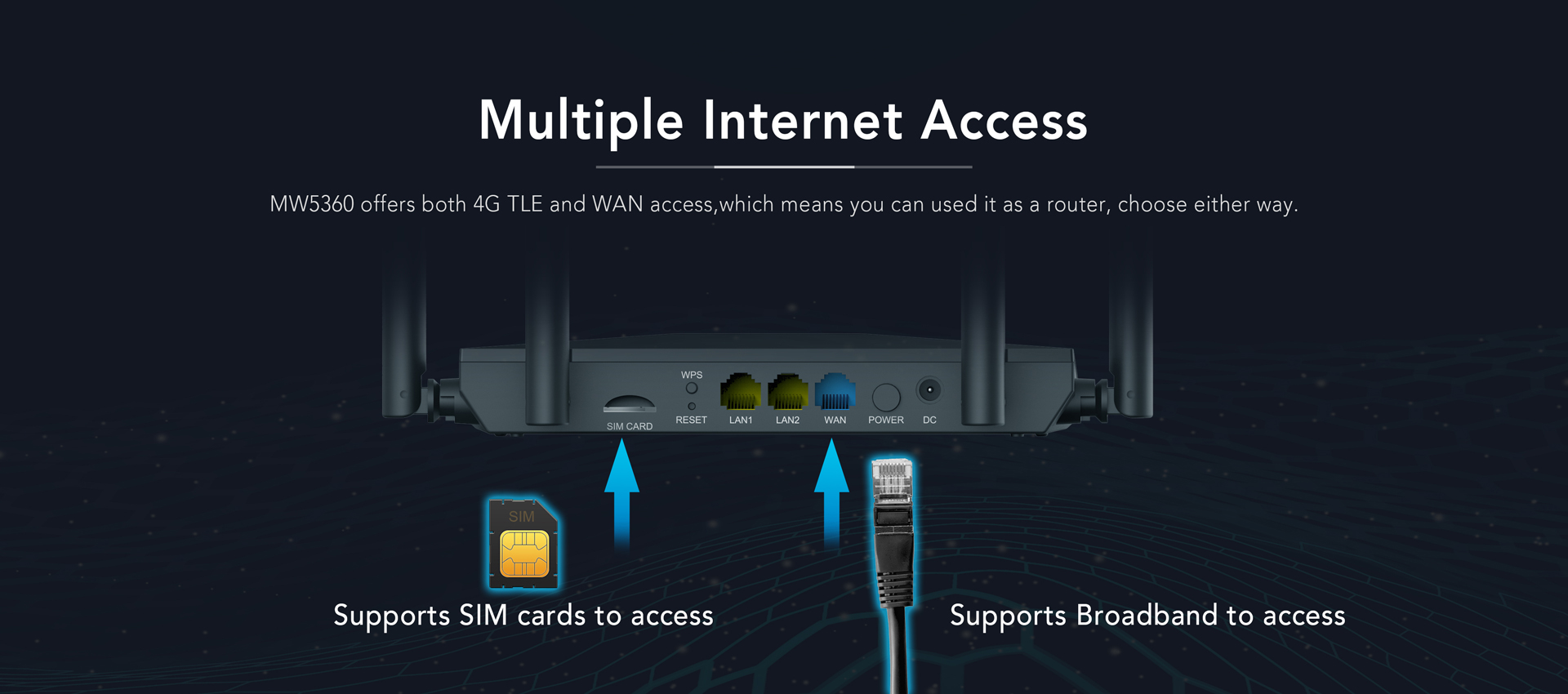

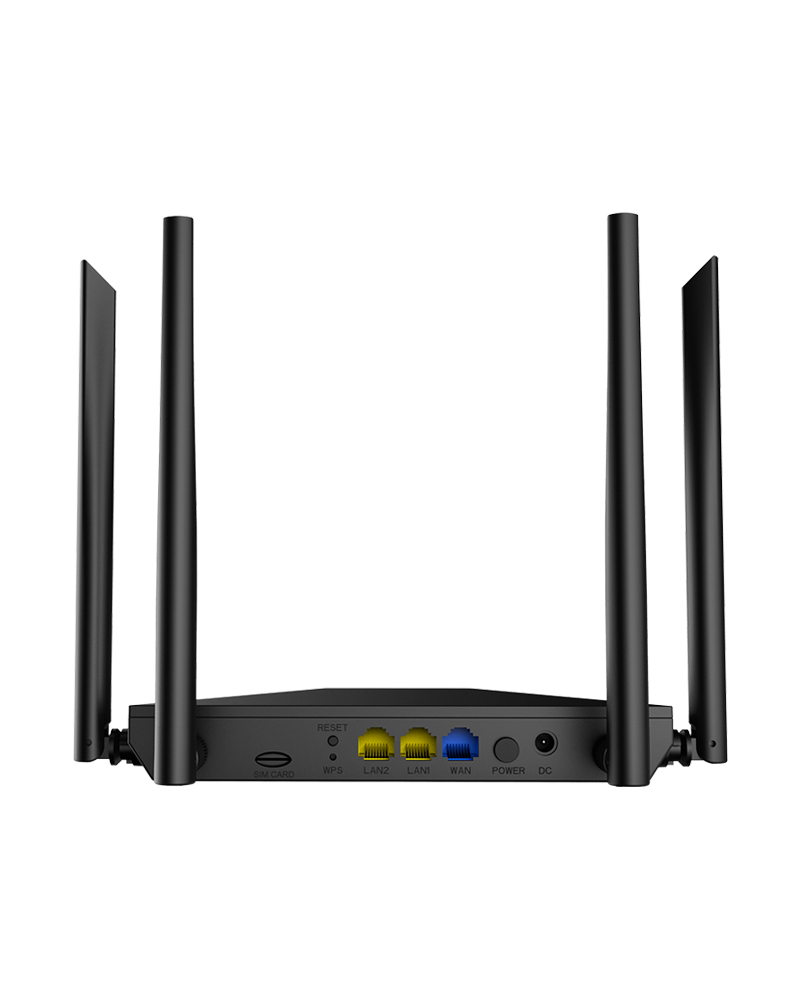

Interface
|
1×10/100Mbps Auto MDI/MDIX RJ45 WAN port

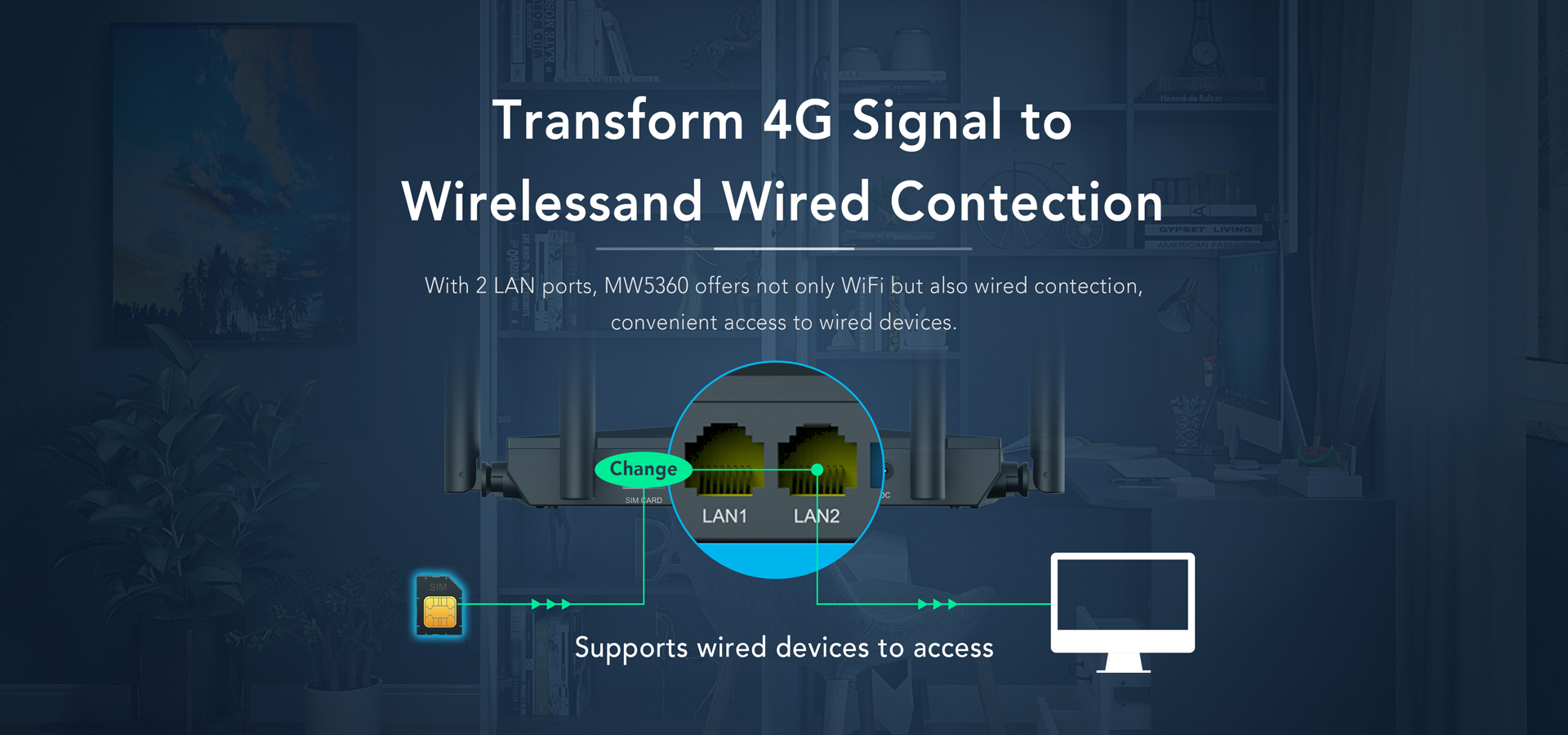

2×10/100Mbps Auto MDI/MDIX RJ45 LAN port
SIM card slot
|
LED Indicators
|
Power, LAN All, WiFi/WPS,EWAN, LTE Strong, LTE Middle, LTE
Weak
|
Buttons
|
Default, WPS
|
Antenna
|
2×5dBi WiFi antennas, 2 SMA detachable 4G antennas
|
Power Supply
|
DC 12V/1.0A(Output)
|
Dimensions
(L x W x H )
|
182mm×108mm×25mm
|
WAN Type
|
WAN: DHCP / Static IP / PPPoE / Russia PPPoE / L2TP / PPTP /
3G&4G
|
Others
|
Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
VPN Pass-through, Dynamic DNS, Static Routing
|
Others
|
Certification
|
FCC, CE, EAC
|
Environment
|
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
Package
|

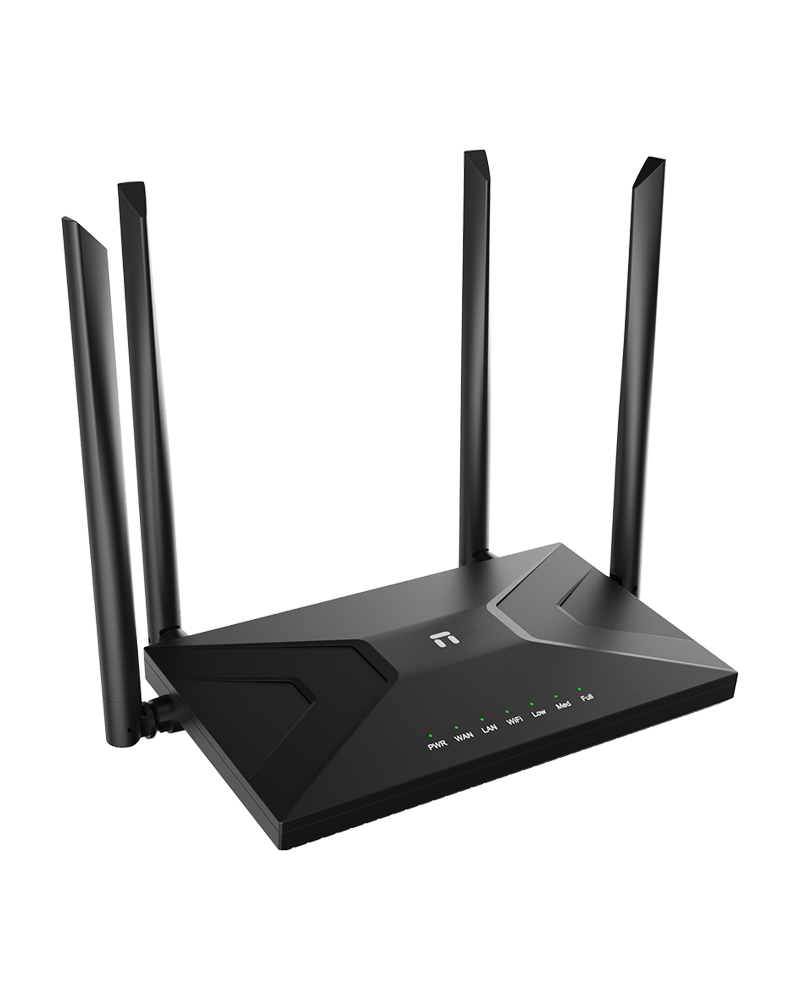

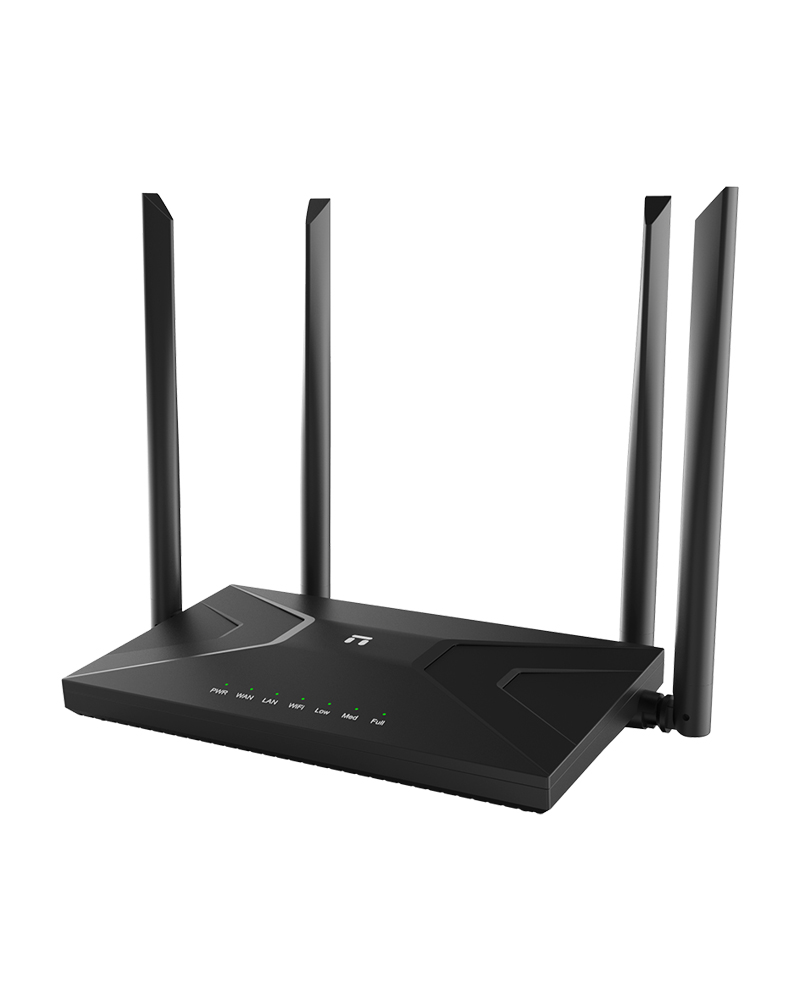

1× MW5360
1× 12V/1A Power Adapter
1× Quick Installation Guide (Multilingual)
|
